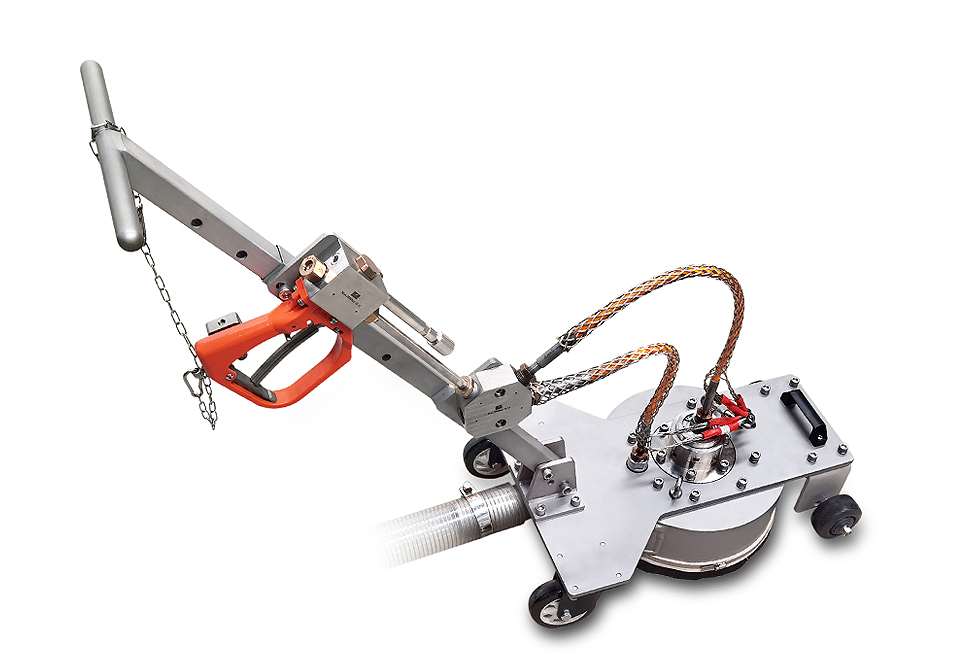

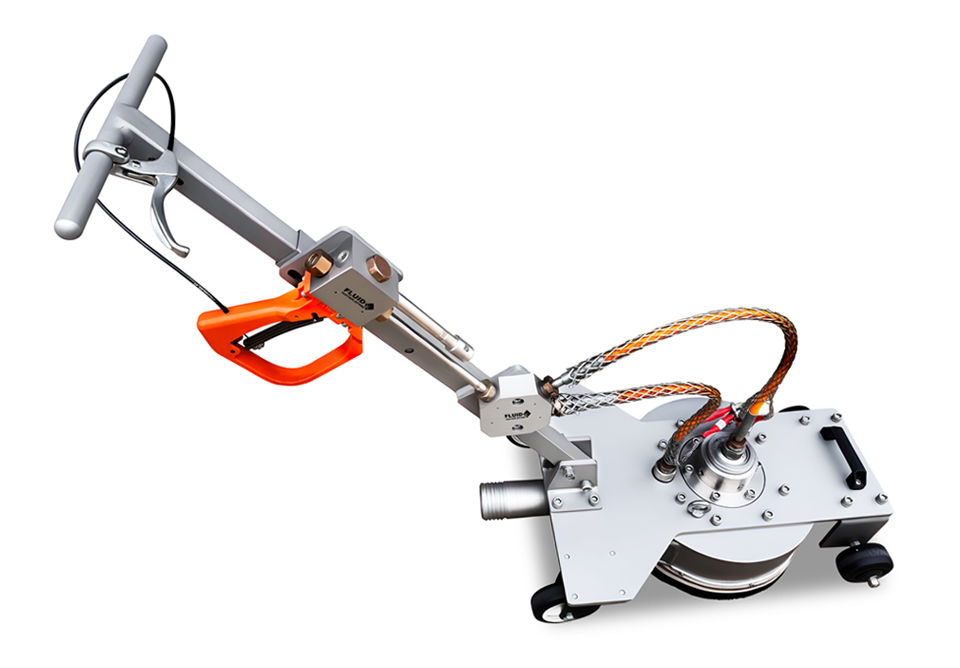

FSVS3000/58A(With Self-vacuum recycling)
Product parameters



FSV-S3000/58A is a self-rotary  and self-vacuum recycling Surface Cleaner, does not require hydraulic, electrical, or pneumatic power to operate, which  perform a wide range of functions such as : removing paint markings, coatings, contaminations, and membranes and degreasing surfaces.

FEATURES:
■The rotating spray arms driven by recoil force, no additional resources needed to power rotation.
■ Pressure control via a dump gun.
■ Adjustable rotation speed ideal for heavier deposits and lighter deposits.
■ Waste water and material from work area are recovered via the vacuum force generated  when HP water is sprayed in a pipe at high speed.
■ Protective nozzle guards help keep nozzles protected from splashback



Technical Specification:

Max. Operating pressure：

3000 bar

Max. Flow rate：

58 l/min

Max.speed（adjustable）：

1500 rpm

Number of sapphire nozzle：

ten or custom-made

Blasting width：

268 mm or custom-made (the Max. blasting width won’t exceed 500mm)

Connection thread：

1-1/8-12 UNF Female with 60-degree cone angle
