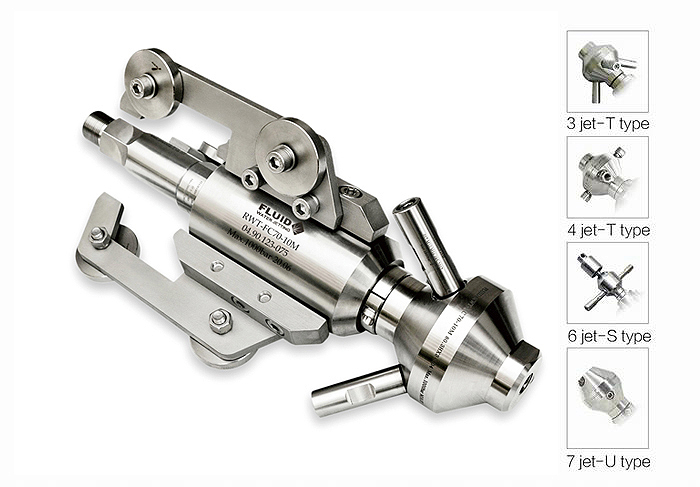

RWT-FC70-30M*
Product parameters

Technical Specification:

Max. Operating pressure

3000 bar

Max. Flow rate

75 l/min

Rotation speed

approx. 200~1500rpm

Max. Outer diameter

ø70mm

Connection thread

1-1/8-12 UNF Female seal with 60-degree cone or custom-made adapter provided


RWT-FC70-30M3

With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T" and  back jets.


RWT-FC70-30M4

With four M10*1.5  sapphire  nozzles  screwed  in  nozzle  extensions "T" Two at 90 degrees, two back jets.


RWT-FC70-30M6

With total six M10*1.5 sapphire  nozzles screwed  in nozzle head or nozzles extensions"S". Two forward jets, two at 90 degrees, two back jets.


RWT-FC70-30M7

With total seven sapphire nozzles screwed in nozzle head.

Three 1/4-28 nozzles forward jets, two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets.




We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
