ADJUSTABLE ROTATION SPEED
Technical Specification:
Max. Operating pressure: |
3000 bar |
Max. Flow rate: |
75 l/min |
Rotation speed: |
approx. 200~1500rpm |
Max. Outer diameter: |
ø88mm |
Connection thread: |
1-1/8-12 UNF Female seal with 60-degree cone or custom-made |

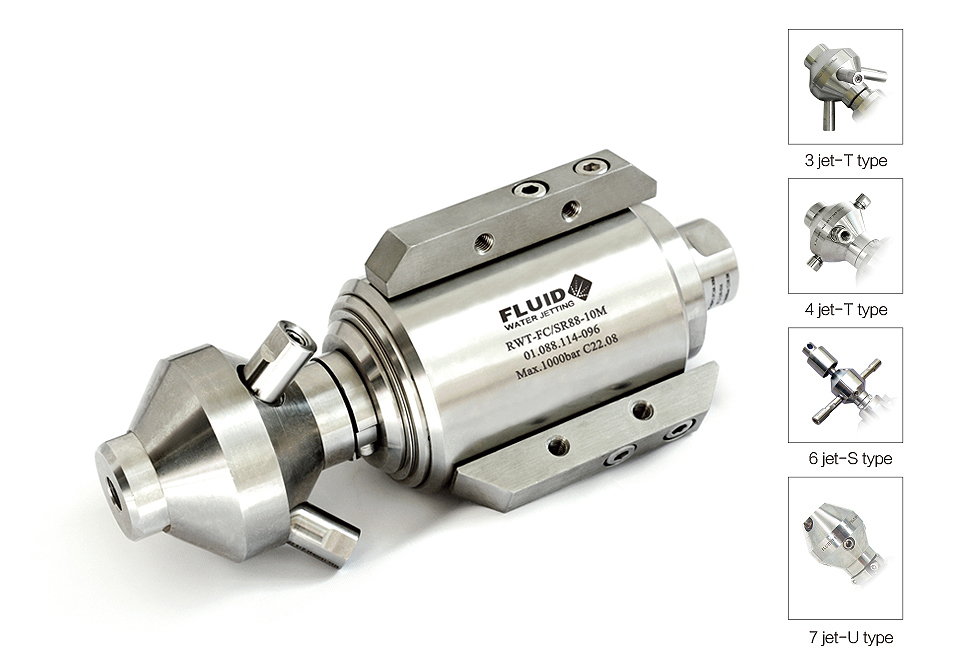

RWT-FC/SR88-30M3
With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T" and back jets. |
With four M10*1.5 sapphire nozzles screwed in nozzle extensions "T" Two at 90 degrees, two back jets. |
With total six M10*1.5 sapphire nozzles screwed in nozzle head or nozzles extensions "S". Two forward jets, two at 90 degrees, two back jets. |
With total seven sapphire nozzles screwed in nozzle head Three 1/4-28 nozzles forward jets, two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets. |
