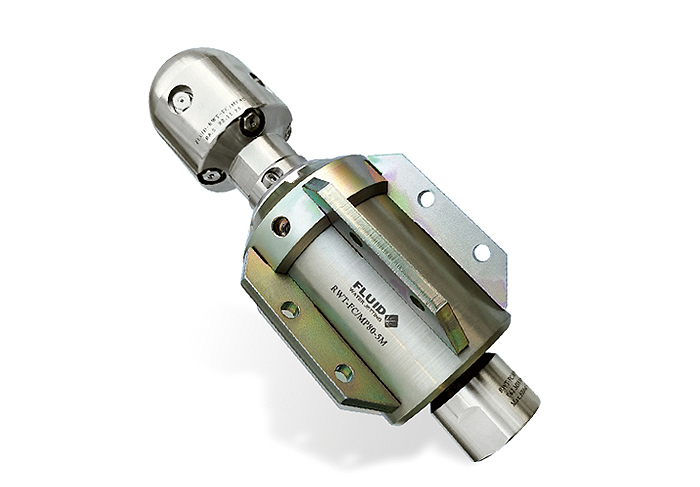

RWT-FC/MP80-15M9*
Product parameters

SEWERAGE/DRAINAGE  CLEANING

Technical Specifications:

Max. Operating pressure：

1500 bar

Max.flow rate：

168 l/min

Rotation speed：

approx. 200~1000rpm

Max. Outer diameter：

ø80mm

Total Length：

Approx.270mm

Connection thread：

M36*2 female; or custom-made (One adapter will be supplied)


RWT-FC/MP80-15M9*（Max.1500bar/168 l/min）

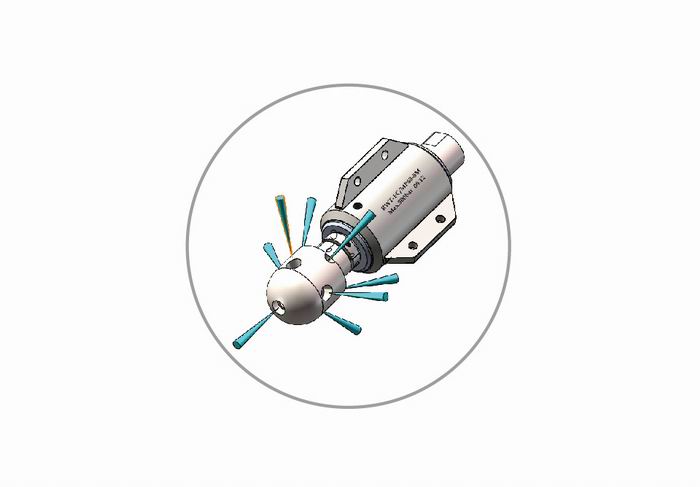

With nine M14*1.5 nozzles screwed in nozzle head. One front jet at 15 degree, and two back jets at 80 degree,  two  back jets at 60 degree, and four back jets at 30 degree.


We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
