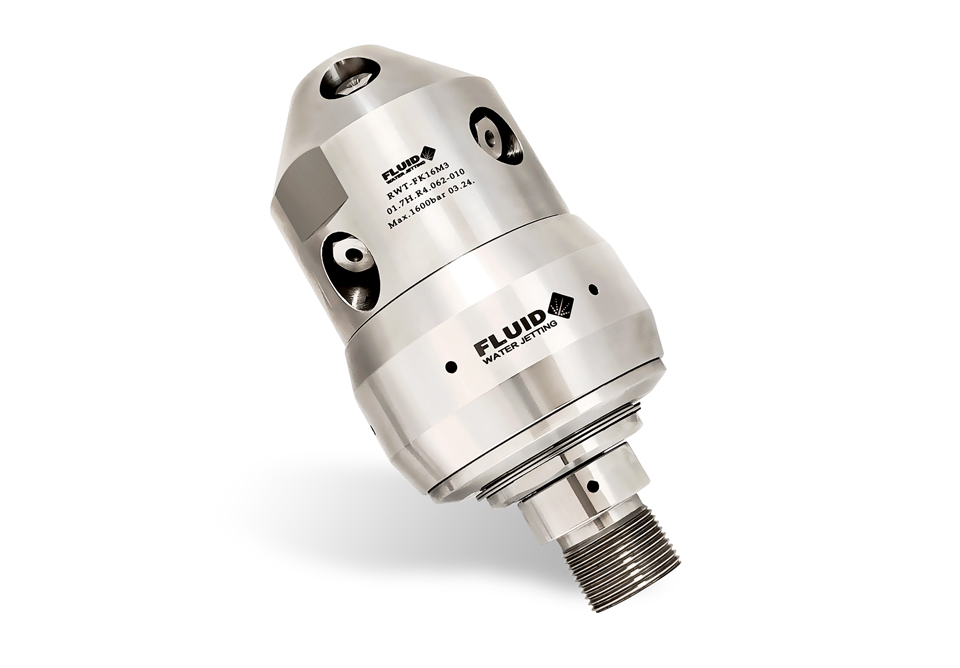

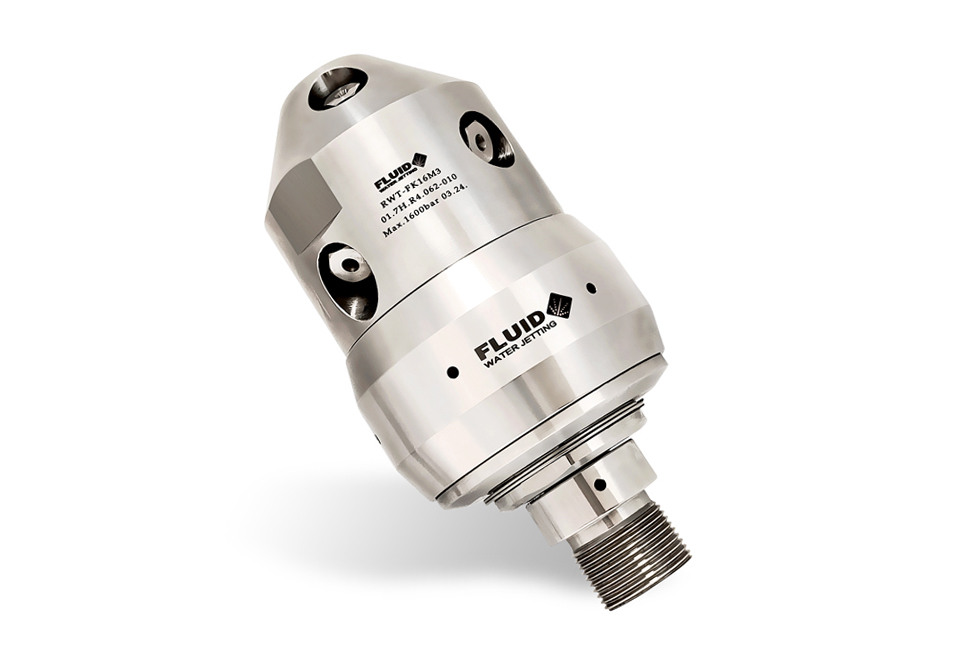

FK-M SERIES

Product parameters

FK-M SERIES

FEATURES:
□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ Three standard head configuration (Not incl. S series)

SERIES/TYPES AND SPECIFICATIONS:

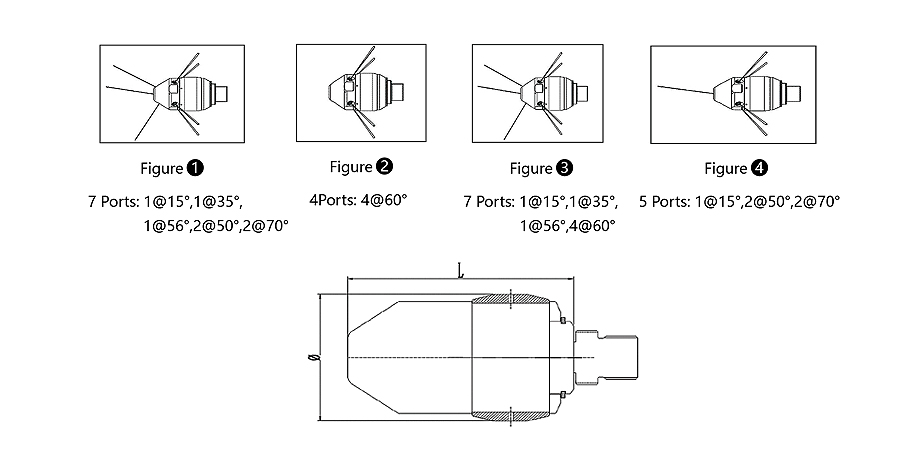

SERIES	TYPES	Max. pressure BAR	Max. flow rate l/min	Diameter ømm	Length L=mm	Figure	Inlet Connection

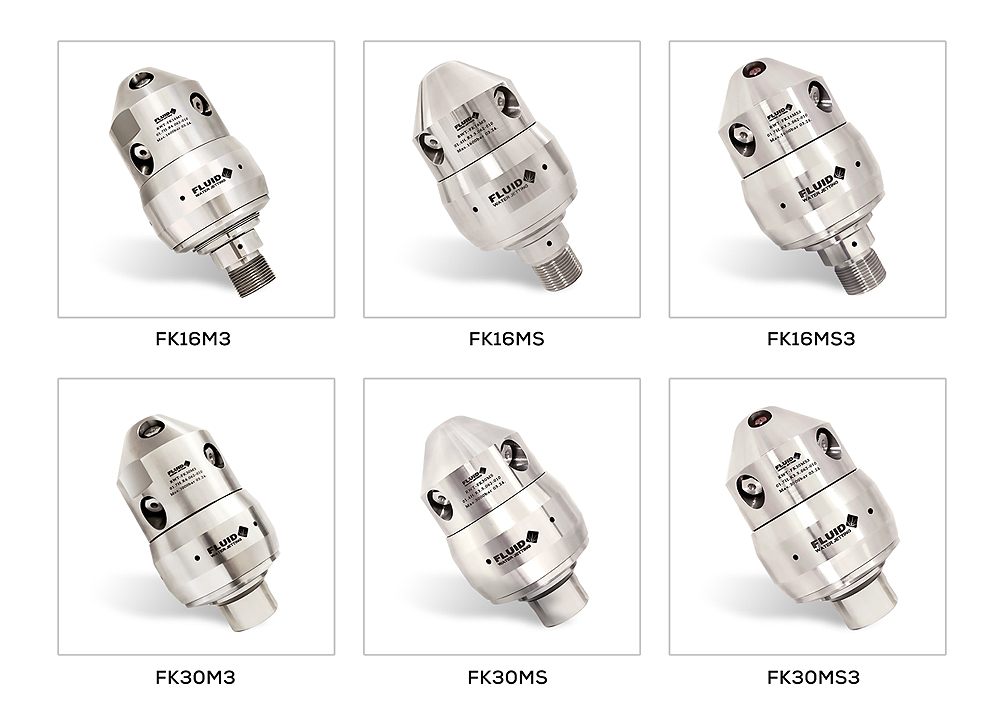

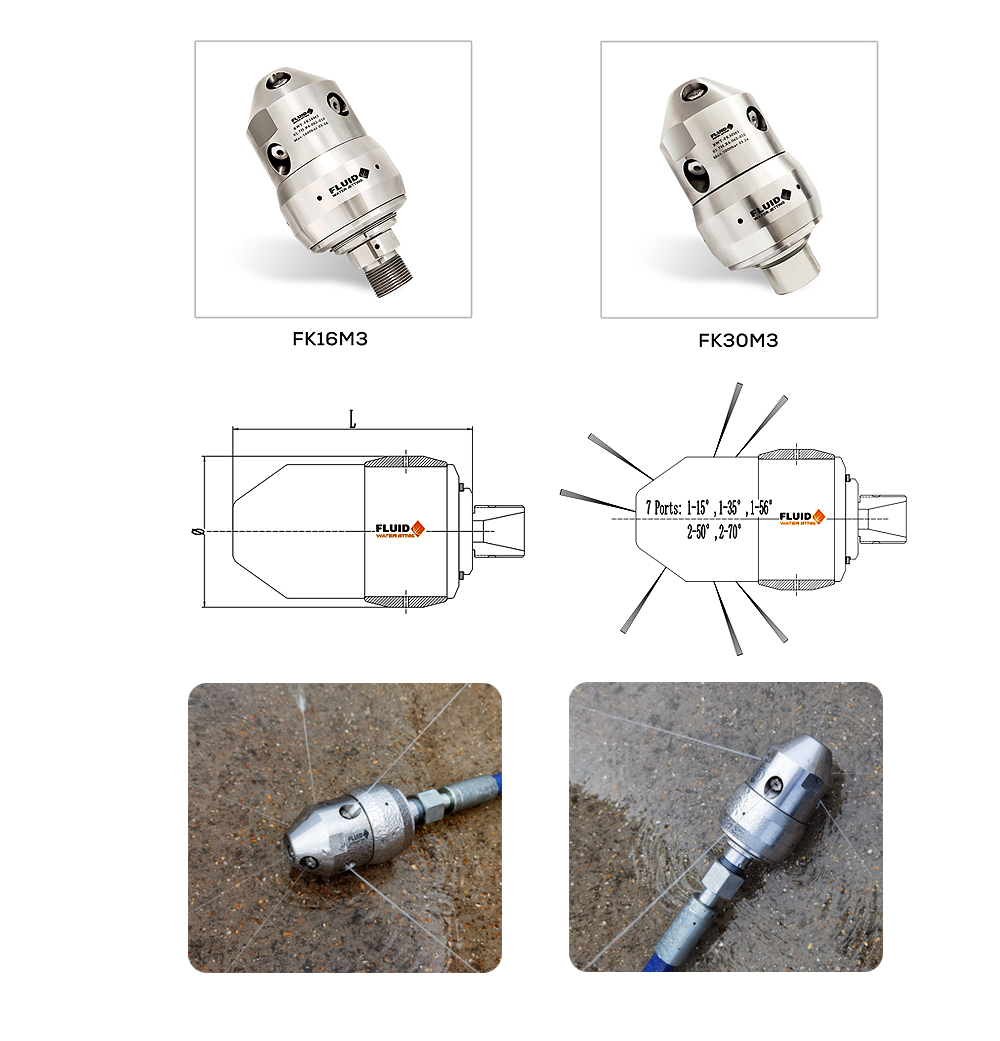

M	FK-16M3	1600	58	ø70	111	❶	M24*1.5 seal with 24-degree cone 3/8BSPP
	FK-16MS	1600	58	ø70	100	❷
	FK-16MS3	1600	58	ø70	100	❸
	FK-30M3	3000	42	ø70	111	❶	1-1/8-12 UNF female seal with a 60 degree cone
	FK-30MS	3000	42	ø70	100	❷
	FK-30MS3	3000	42	ø70	100	❸

We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
