FK-L SERIES

Product parameters

FK-L SERIES

FEATURES:
□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ Three standard head configuration (Not incl. S series)

SERIES/TYPES AND SPECIFICATIONS:

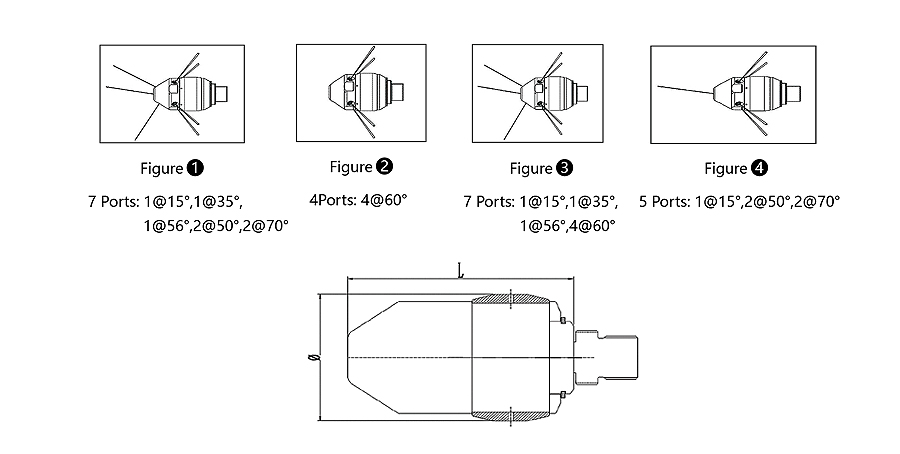

SERIES	TYPES	Max. pressure BAR	Max. flow rate l/min	Diameter ømm	Length L=mm	Figure	Inlet Connection
L	FK-16L3	1600	117	ø80	117	❶	M24*1.5 seal with 24-degree cone 3/8BSPP
	FK-16LS	1600	117	ø80	109	❷
	FK-16LS3	1600	117	ø80	109	❸
	FK-30L3	3000	75	ø80	117	❶	1-1/8-12 UNF female seal with a 60 degree cone
	FK-30LS	3000	75	ø80	109	❷
	FK-30LS3	3000	75	ø80	109	❸

We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
