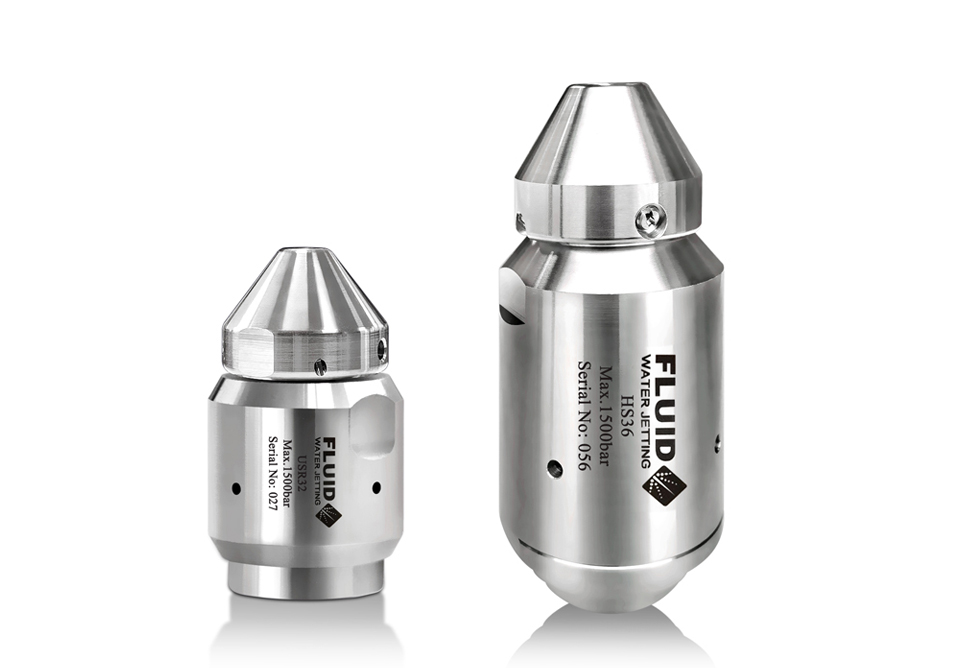

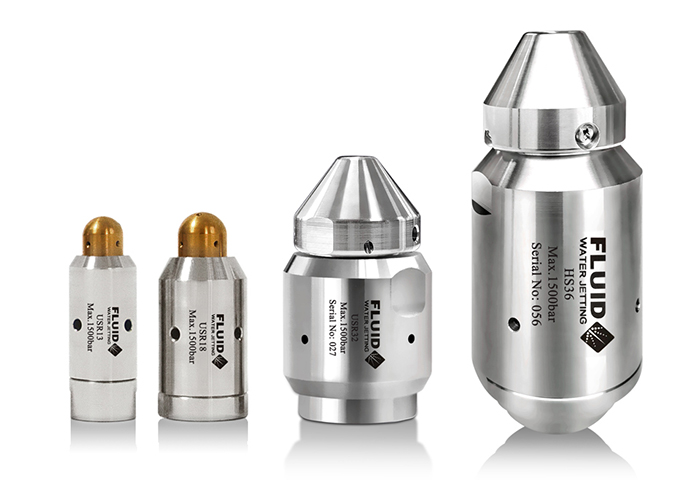

New USR & HS Nozzles
Product parameters



New USR & HS Nozzles (Max.1500bar)

USR13
USR18
USR32
● USR32A (Drilled orifices)
● USR32B-(M3 Nozzles)
HS36-E15
● HS36-E15A*(Drilled orifices)
● HS36-E15B*(M3 Nozzles)
HS36-P15
● HS36-P15A*(Drilled orifices)
● HS36-P15B*(M3 Nozzles)
HS36-RP15 (M4*0.5 Sapphire Nozzles)


SPECIFICATIONS:

USR13

OD:13mm

Length:41mm

USR18

OD:18mm

Length:41mm

USR32A*

OD:32mm

Length:66mm

USR32B*

OD:32mm

Length:70mm

HS36-E15A*

OD:36mm

Length:86mm

HS36-E15B*

OD:36mm

Length:89mm

HS36-P15A*

OD:36mm

Length:86mm

HS36-P15B*

OD:36mm

Length:89mm

HS36-RP15*

OD:36mm

Length:87mm



Body type

Connecting thread

Flow range

External
diameter

Suitable i/d

range of tubes





USR13




M8*1

M8

M10*1

1/8BSPP

1/4-28LH

1/4-28RH

3/8-24LH

3/8-24RH





11~44 l/min








13mm








15~25mm





USR18



M10*1

1/4BSPP

9/16 -18LH

9/16 -18RH


13~65 l/min




18mm




22~33mm




USR32



M10*1

1/4BSPP

9/16 -18LH

9/16 -18RH


13~65 l/min




32mm




36~60mm




HS36-E15*



M10*1

1/4 BSPP

9/16-18 LH

9/16-18 RH


30~75l/min




36mm




45~65mm




HS36-P15*

HS36-RP15*


M10*1

1/4 BSPP

9/16-18 LH

9/16-18 RH


20~75l/min




36mm




45~65mm
