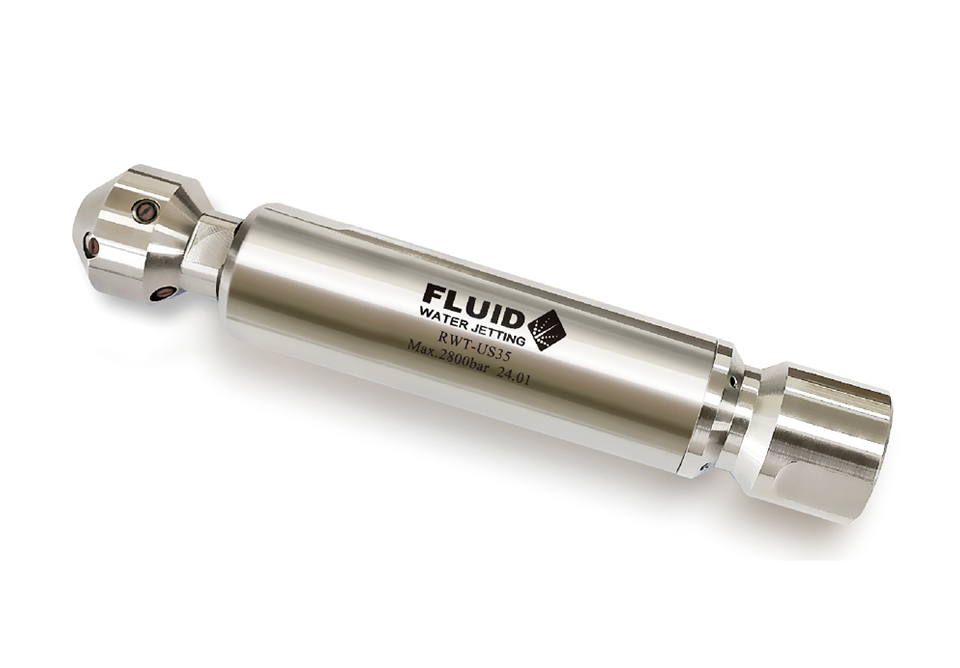

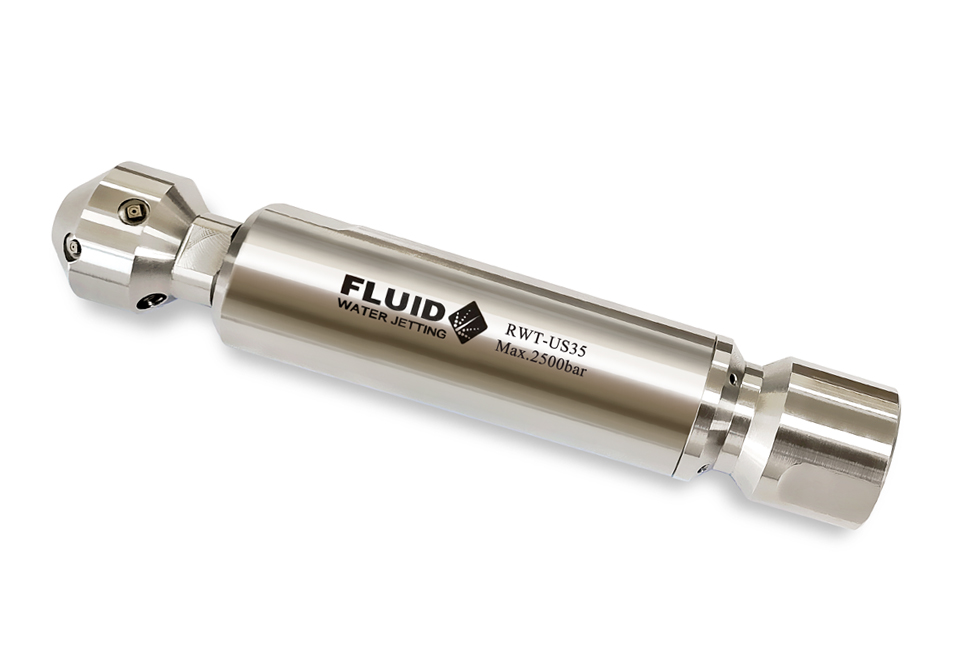

RWT-S35（OD 35）
Product parameters
Technical Specification:
|
Max. Operating pressure： |
2800bar |
|
Max. Flow rate： |
42 l/min |
|
Rotation speed： |
500~1500rpm |
|
Max. Outer diameter： |
ø35 mm |
|
Length： |
156 mm |
|
Connection thread： |
M24*1.5 male with 24-degree cone angle or M20*1.5 female or custom-made |
Magnetic rotation speed control will reduce wear and gives better jetting impact.
Nozzle Heads:

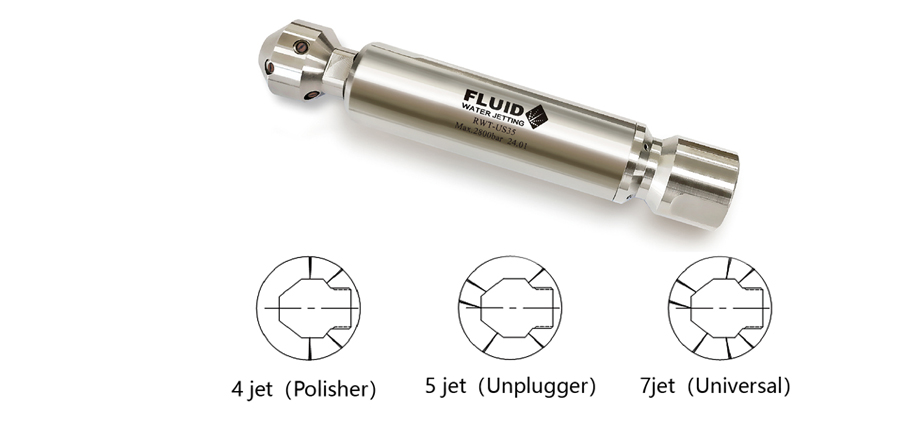

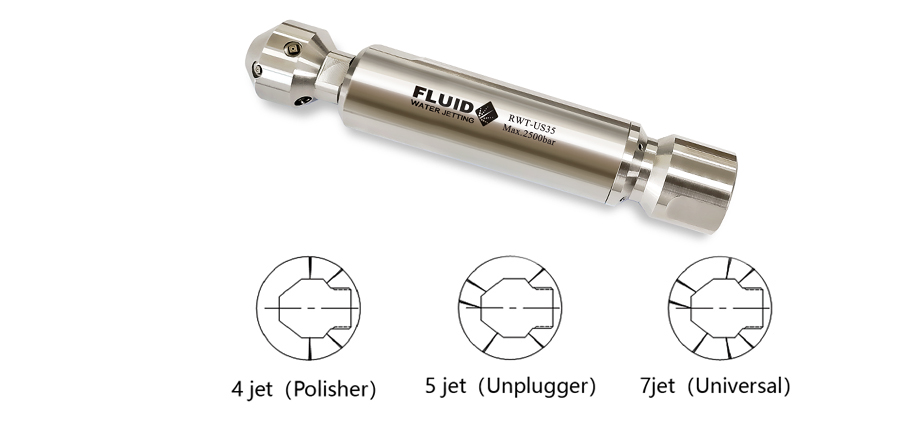

Three standard head designs are available with drilled orifices (Max1600 bar) or M4 hardened stell nozzles (Max.2000bar) or M4 sapphire nozzles (Max.2800bar). The universal head has total seven orifices or nozzles, three forward jet, two jets at 90 degrees and another two back jets. The polisher head has four orifices or nozzles, two at 90 degrees and another two back jets. The unplugger head has five orifices or nozzles, three forward jet and two back jet.
RWT-S35-16M4 (Polisher) Max.1600 bar
RWT-S35-16M5 (Unplugger) Max.1600 bar
RWT-S35-16M7 (Universal) Max.1600 bar
-----------------------------------------------------
RWT-S35-20MN4 (Polisher) Max.2000 bar
RWT-S35-20MN5 (Unplugger) Max.2000 bar
RWT-S35-20MN7 (Universal) Max.2000 bar
-----------------------------------------------------
RWT-S35-28MS4 (Polisher) Max.2800 bar
RWT-S35-28MS5 (Unplugger) Max.2800 bar
RWT-S35-28MS7 (Universal) Max.2800 bar
