Product parameters

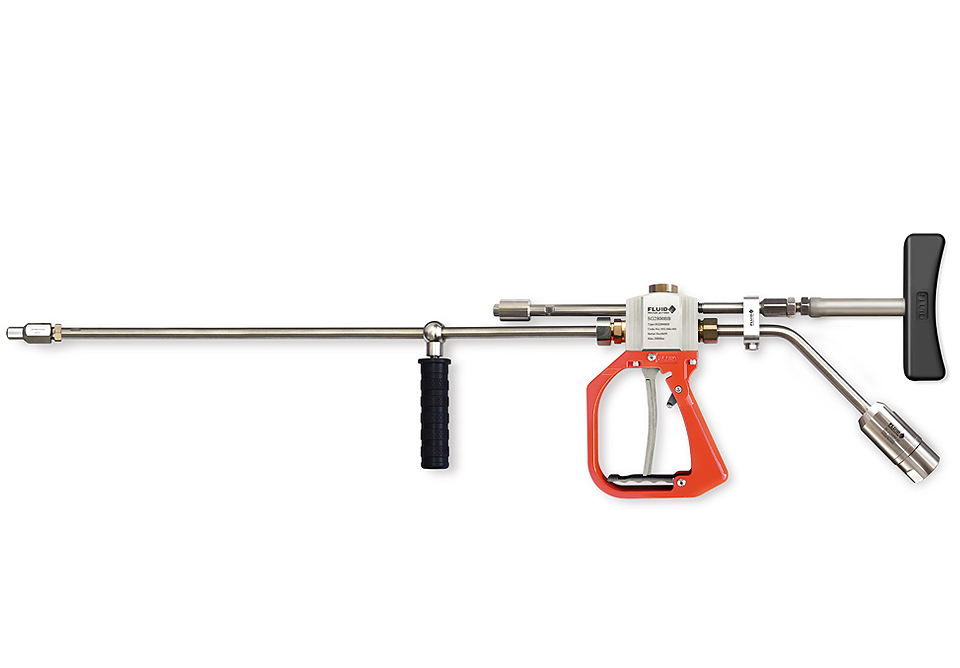

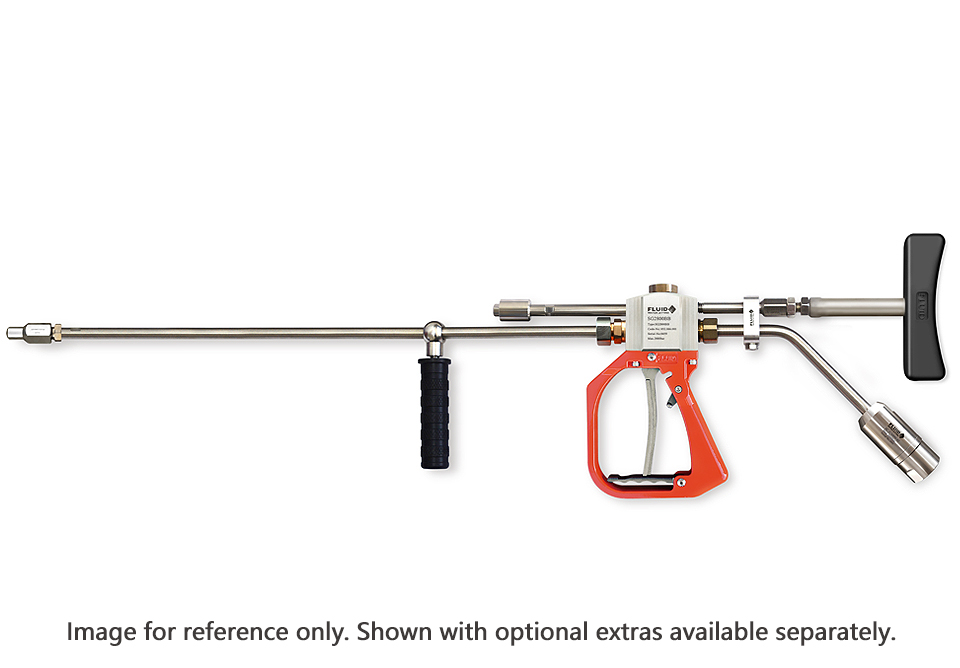

The hand-held dump style control guns allow the operator to have complete control of the pressure at all times. The water is dumped by the dump valve when the dump gun is deactivated.
FEATURES:

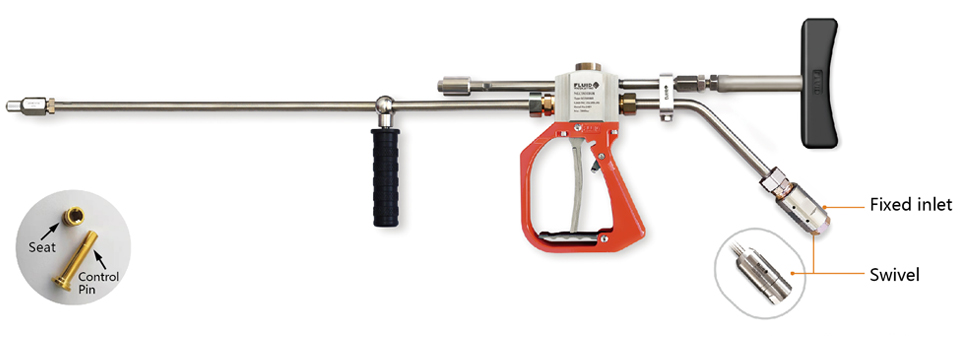

■ Cartridge is specially designed to replace the worn-out parts including control pin and seat alone.
■ No need to replace the full cartridge and save money. available in fixed, semi-swivel and full swivel inlet connection options.
Technical Specification:
Max. Operating pressure:
|
2800 bar
|
Max. Flow rate:
|
50 l/min
|
Lance type:
|
9/16”
|
Lance length:
|
1100mm or Custom-made
|
Weight:
|
approx.6.9kg
|
Connection thread:
|
1-1/8-12 UNF Female with 60-degree cone angle or custom-made
|
