RWT-OF28T (HP SEAL)

Product parameters

RWT-OF28T (HP SEAL)

FEATURES:

■ Magnetic speed control, no need of regular maintenance.

■ Easy to change seal parts.

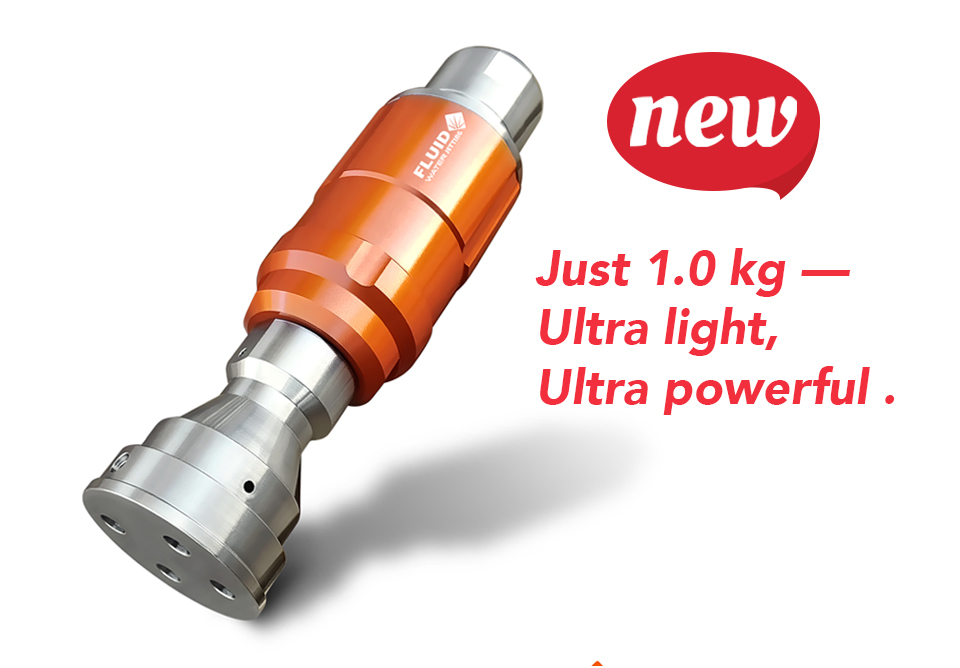

■ Just 1.0 kg — Ultra light, Ultra powerful .

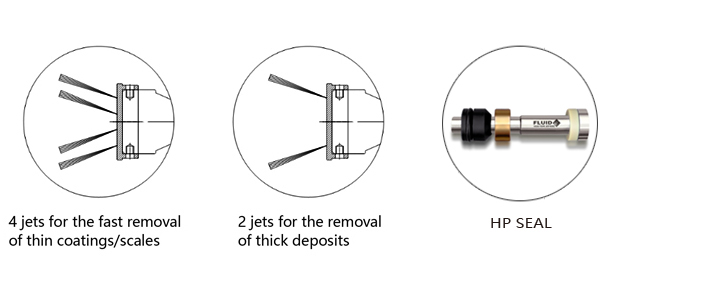

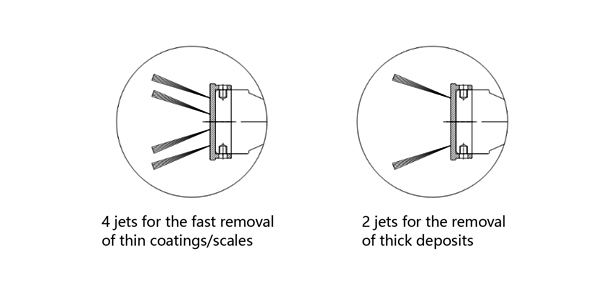

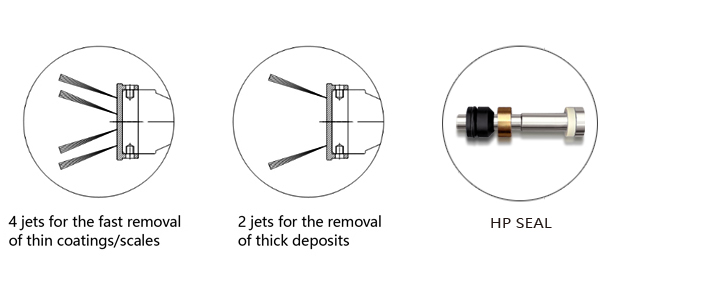

■ Two jets ideal for removing thick deposits, four jets ideal for faster removal of thin coatings/scales.

SPECIFICATIONS

Max.Operating pressure:	2800bar
Flow range:	11~38 l/min
Rotation Speed:	500~2500 rpm
Diameter:	￠54 mm
Total length:	178 mm
Approx. weight:	1.0 kg
Connection thread:	1-1/8-12 UNF Female
Sapphire nozzle:	4M101.5 Or 2 sapphire nozzles + 2 plugs

Nozzle Size mm*	Min. Pressure bar	Max. Pressure bar	Flow Range l/min
￠0.40 X4	1550	2800	12~14
￠0.45 X4	1200	2800	13~16
￠0.50 X4	1000	2200	15~22
￠0.55 X4	830	1800	16~24
￠0.8*2+2 plugs	780	1700	17~25
￠0.9*2+2 plugs	620	1350	19~28
￠1.0*2+2 plugs	500	1100	21~31
￠1.1*2+2 plugs	410	900	23~34
￠1.2*2+2 plugs	350	750	25~37

Note: When manually operating high pressure guns and lances, the reaction force

on the axis should not exceed 250 N. A shoulder stock is required if the reaction

force exceeds 150 N.
