RWT-OF28T/D (Dynamic Seal)
Product parameters

RWT-OF28T/D (Dynamic Seal Assembly)


FEATURES:

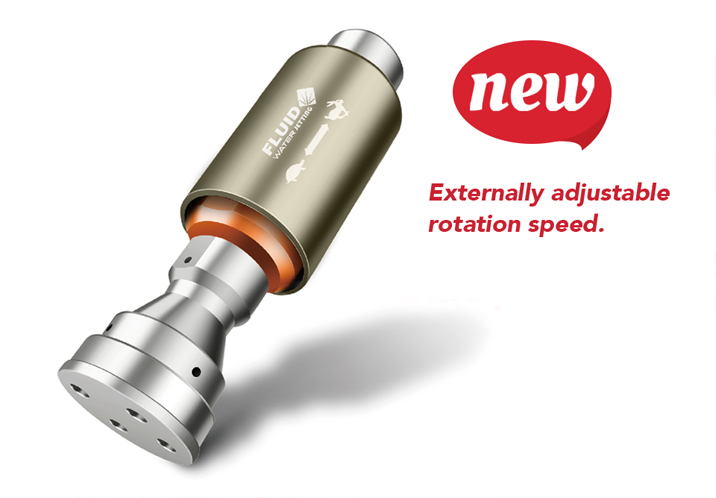

■ Magnetic speed control, no need of regular maintenance.

■ Easy to change seal parts.

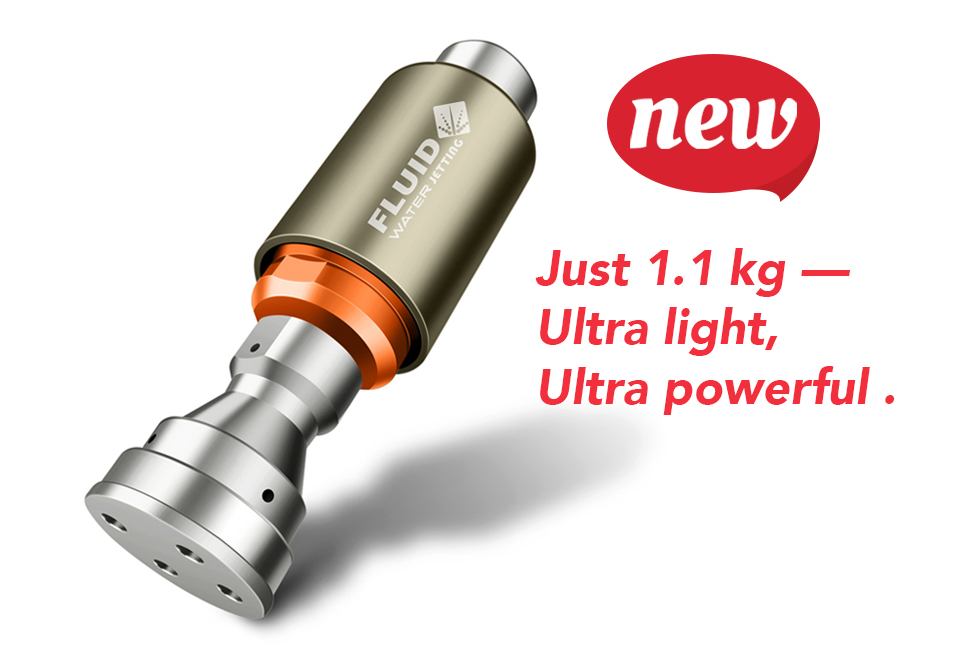

■ Just 1.1 kg — Ultra light, Ultra powerful .

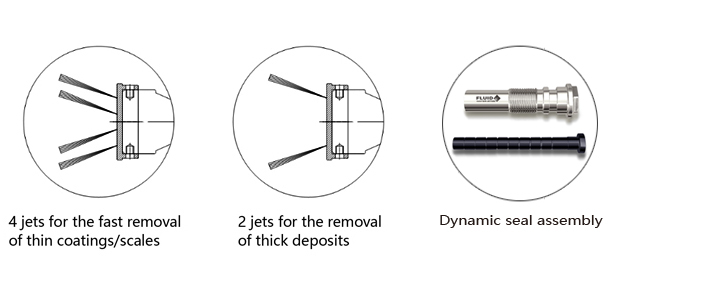

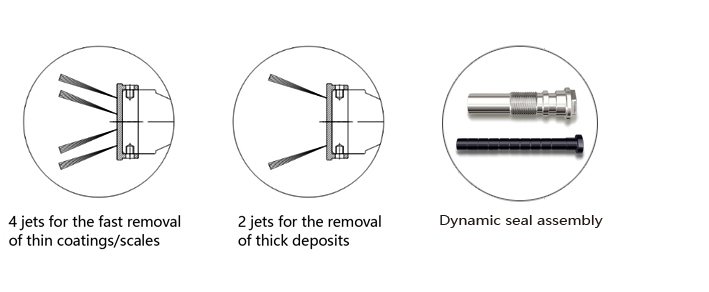

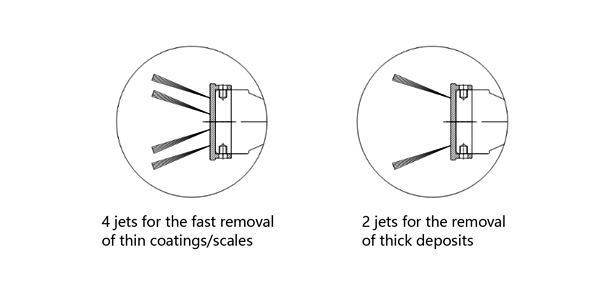

 ■ Two jets ideal for removing thick deposits, four jets ideal for faster removal of thin  coatings/scales.

SPECIFICATIONS


Max.Operating pressure:

2800bar

Flow range:

9~34 l/min

Rotation Speed:

500~2500 rpm

Diameter:

￠54 mm

Total length:

178 mm

Approx. weight:

1.1 kg

Connection thread:

1-1/8-12 UNF Female

Sapphire nozzle:

4*M10*1.5

Or 2 sapphire nozzles + 2 plugs


Nozzle Size

mm*

Min. Pressure

bar

Max. Pressure

bar

Flow Range

l/min

￠0.40 X4

1000

2800

9  ~14

￠0.45 X4

750

2200

11~18

￠0.50 X4

620

1800

12~20

￠0.55 X4

500

1480

13~22

￠0.8*2+2 plugs

500

1400

13~23

￠0.9*2+2 plugs

380

1100

15~26

￠1.0*2+2 plugs

310

900

17~28

￠1.1*2+2 plugs

260

740

19~31

￠1.2*2+2 plugs

220

620

20~34


Note: When manually operating high pressure guns and lances, the reaction force

on the  axis  should not exceed 250 N.  A shoulder stock is required if the reaction

force exceeds 150 N.




We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
