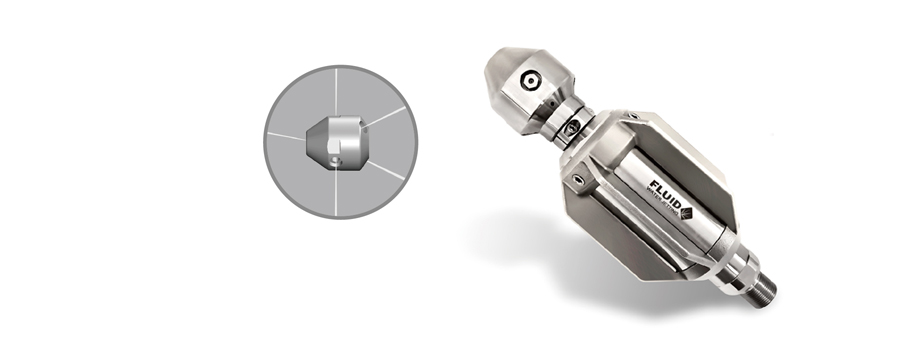

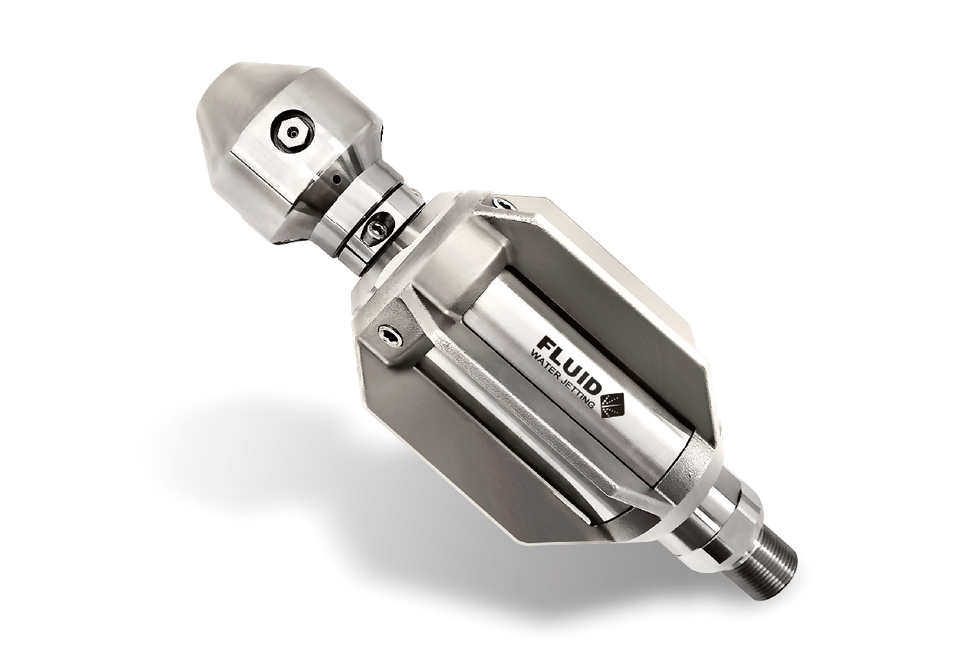

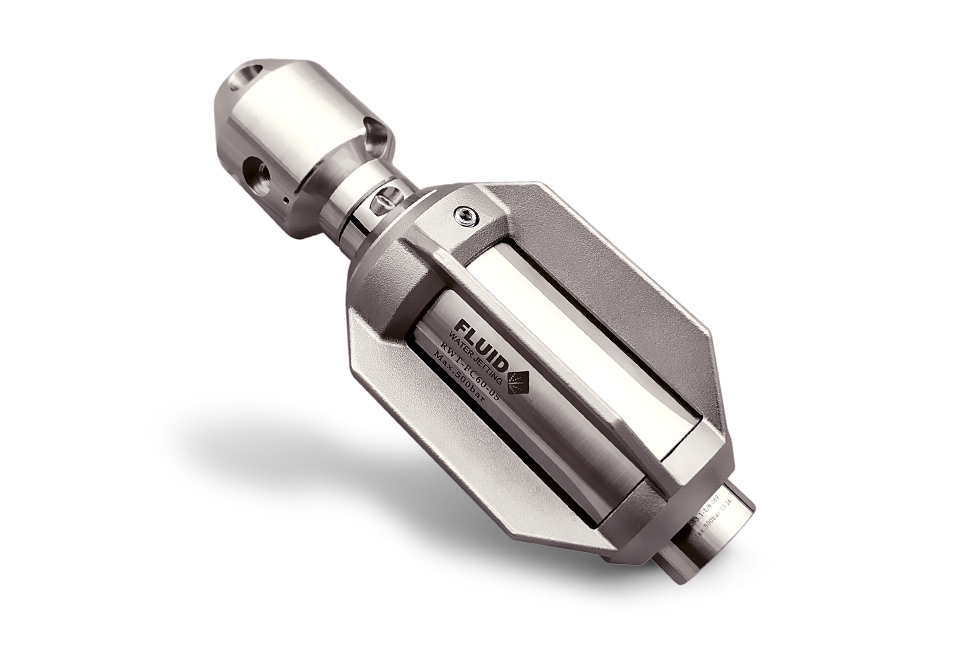

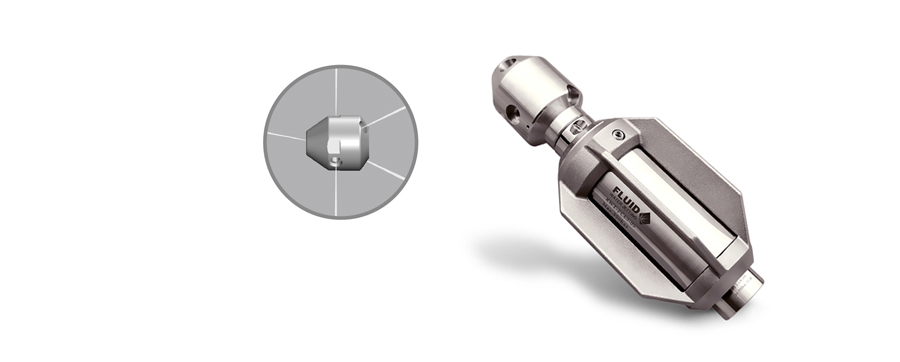

FC60 SERIES

Product parameters

FEATURES:
□ Magnetic rotation speed control will reduce wear and gives better jetting impact.
□ 5 jets: 1 @ 15°，2 @ 90°，2 @ 35°.

RWT-FC60-05M*

SPECIFICATIONS

Max. Operating pressure：	500 bar
Max. Flow rate：	230 l/min
Rotation speed：	approx. 200~1500rpm
Max. Outer diameter：	ø60mm (Not incl. centralizer)
Connection thread：	M36*2 or custom-made adapter provided.

RWT-FC60-15M*

SPECIFICATIONS

Max. Operating pressure：	1500 bar
Max. Flow rate：	75 l/min
Rotation speed：	approx. 200~1500rpm
Max. Outer diameter：	ø60mm (Not incl. centralizer)
Connection thread：	M24X1.5 or custom-made adapter provided.

RWT-FC60-30M*

SPECIFICATIONS

Max. Operating pressure：	3000 bar
Max. Flow rate：	42 l/min
Rotation speed：	approx. 200~1500rpm
Max. Outer diameter：	ø60mm (Not incl. centralizer)
Connection thread：	1-1/8-12 UNF female or custom-made adapter provided.

We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
