UFC70 SERIES
Product parameters




FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.

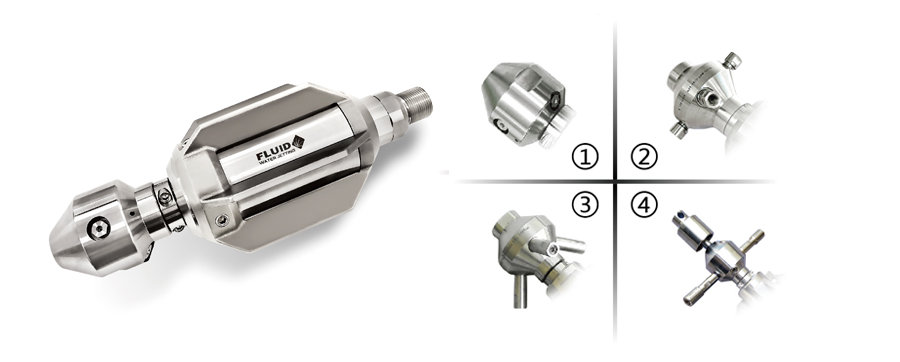

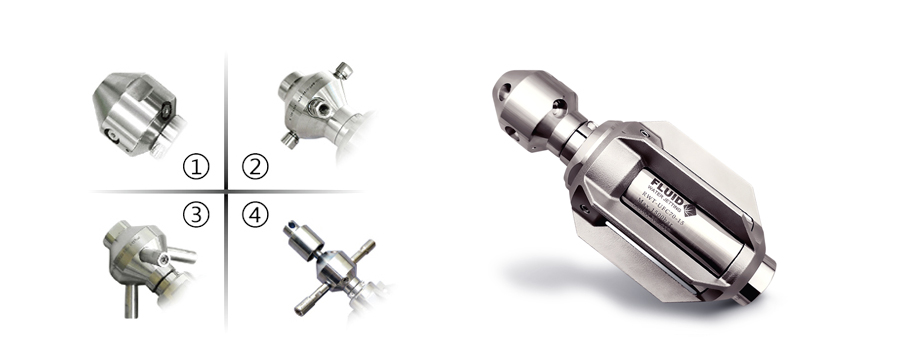

□ Four standard head configuration.

① 5 jets: 1 @ 15° forward，2 @ 90°，2 @ 35° back jet.
② 4 jets: 2 @ 90°，2 @ 50° back jet.
③ 3 jets: 3 @ 60° back jet.
④ 6 jets: 2 @ 60° forward，2 @ 90°，2 @ 50° back jet.

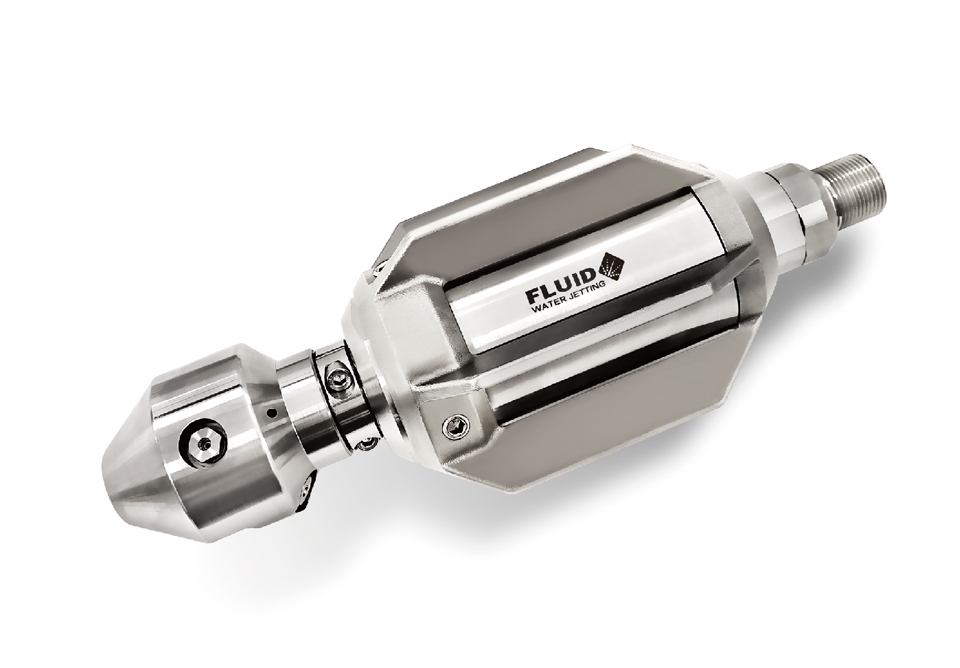

RWT-UFC70-05M*

SPECIFICATIONS

Max. Operating pressure：

500 bar

Max. Flow rate：

300 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

M36*2  or custom-made adapter provided.

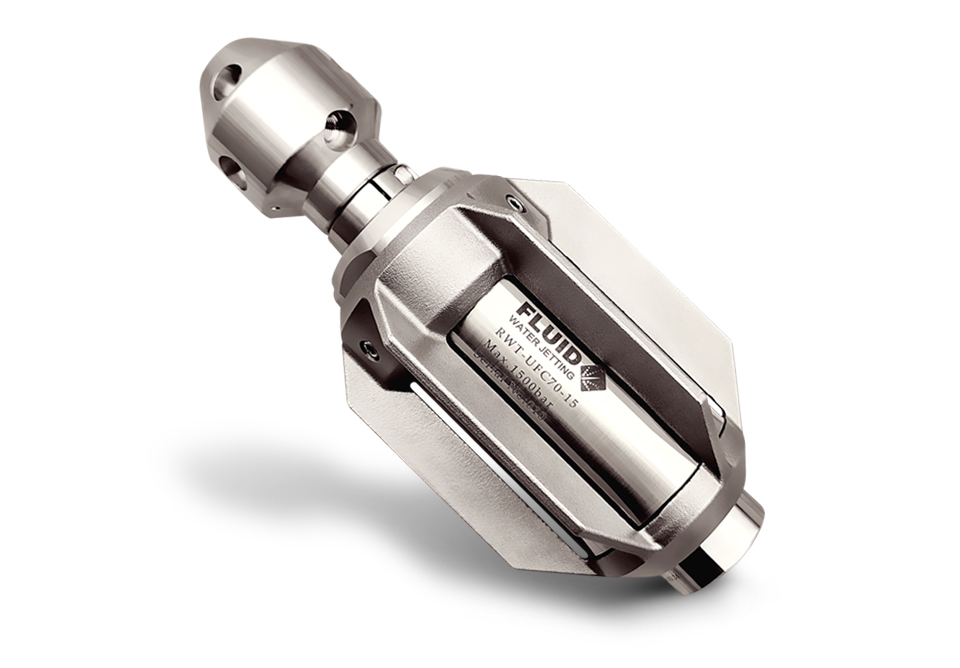

RWT-UFC70-15M*

SPECIFICATIONS

Max. Operating pressure：

1500 bar

Max. Flow rate：

168 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

M24*1.5 / M36X2 or custom-made adapter provided.

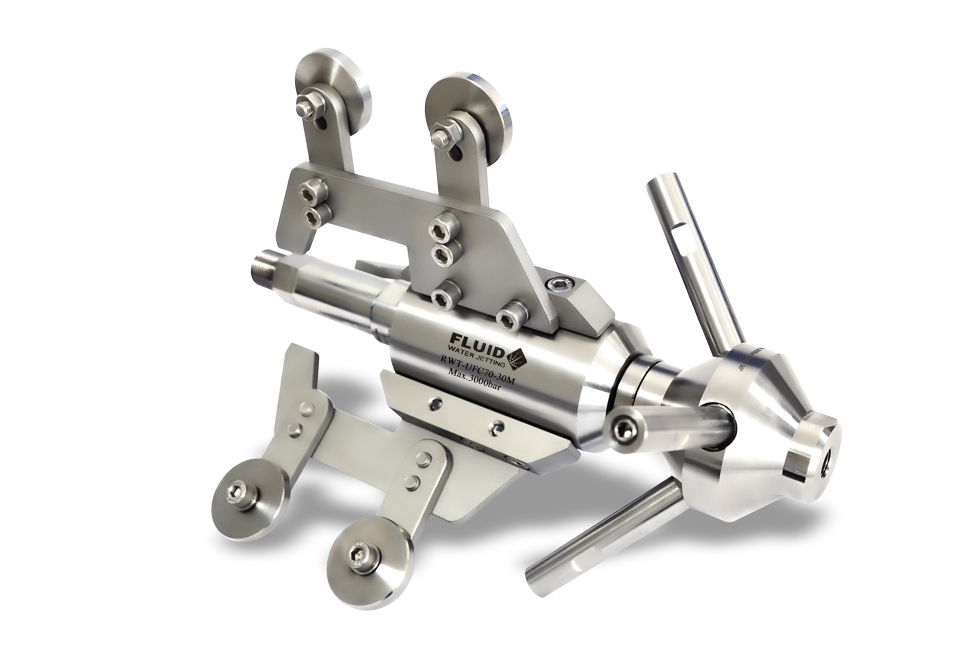

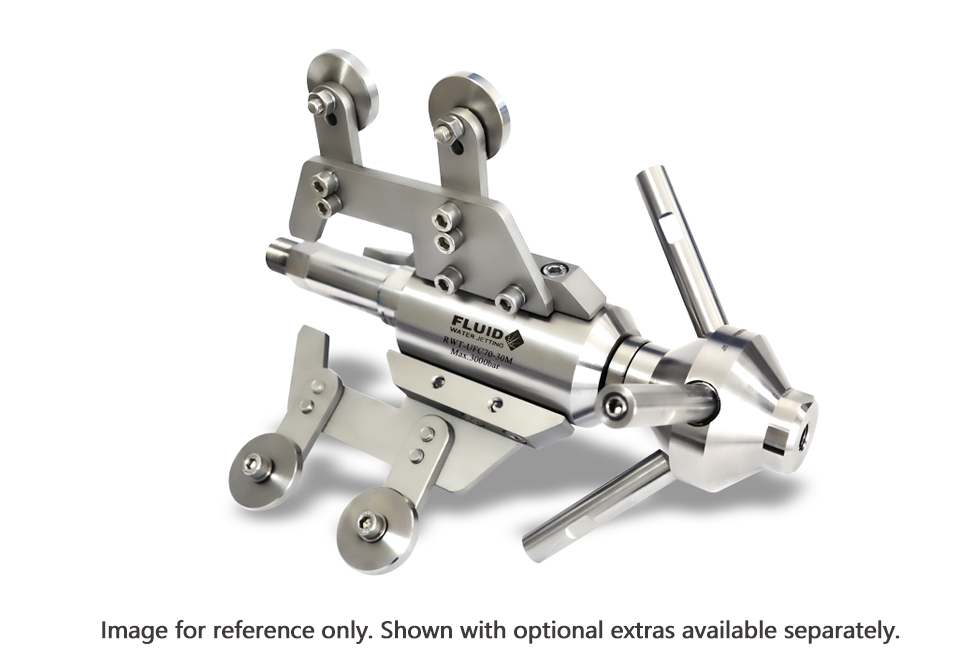

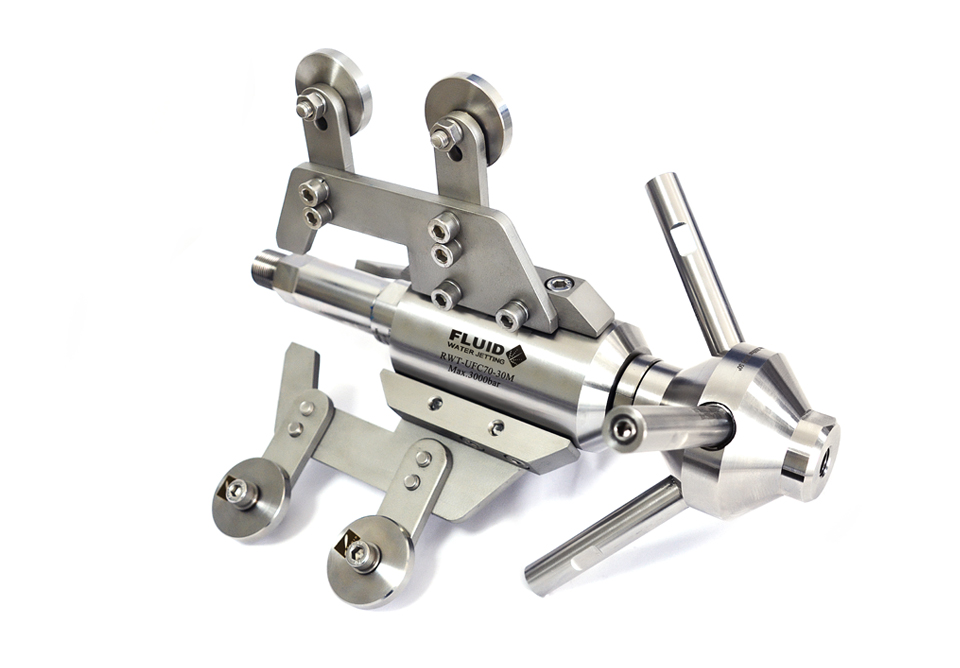

RWT-UFC70-30M*

SPECIFICATIONS

Max. Operating pressure：

3000 bar

Max. Flow rate：

75 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread：

1-1/8-12 UNF female or custom-made adapter provided.





We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
