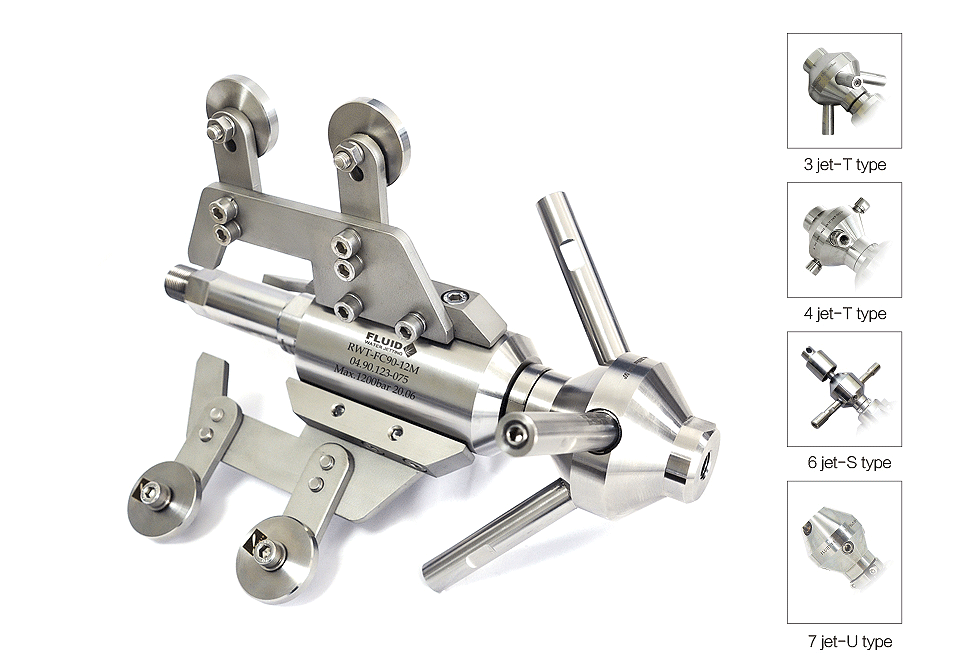

RWT-FC90-12M*

Product parameters

Technical Specification:

Max. Operating pressure：	1200 bar
Max. Flow rate：	230 l/min
Rotation speed：	approx. 200~1500rpm
Max. Outer diameter：	ø90mm
Connection thread：	1-1/8-12 UNF Female or custom-made adapter provided

RWT-FC90-12M3

With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T" and back jets.

RWT-FC90-12M4

With four M10*1.5 sapphire nozzles screwed in nozzle extensions "T"

Two at 90 degrees, two back jets.

RWT-FC90-12M6

With total six M10*1.5 sapphire nozzles screwed in nozzle head or nozzles extensions "S". Two forward jets, two at 90 degrees, two back jets.

RWT-FC90-12M7

With total seven sapphire nozzles screwed in nozzle head.

Three 1/4-28 nozzles forward jets, two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets.
