RWT-FC90-30M*
Product parametersTechnical Specification:
|
Max. Operating pressure: |
3000 bar |
|
Max. Flow rate: |
117 l/min |
|
Rotation speed: |
approx. 200~1500rpm |
|
Max. Outer diameter: |
ø90mm |
|
Connection thread: |
1-1/8-12 UNF Female seal with 60-degree cone or custom-made |

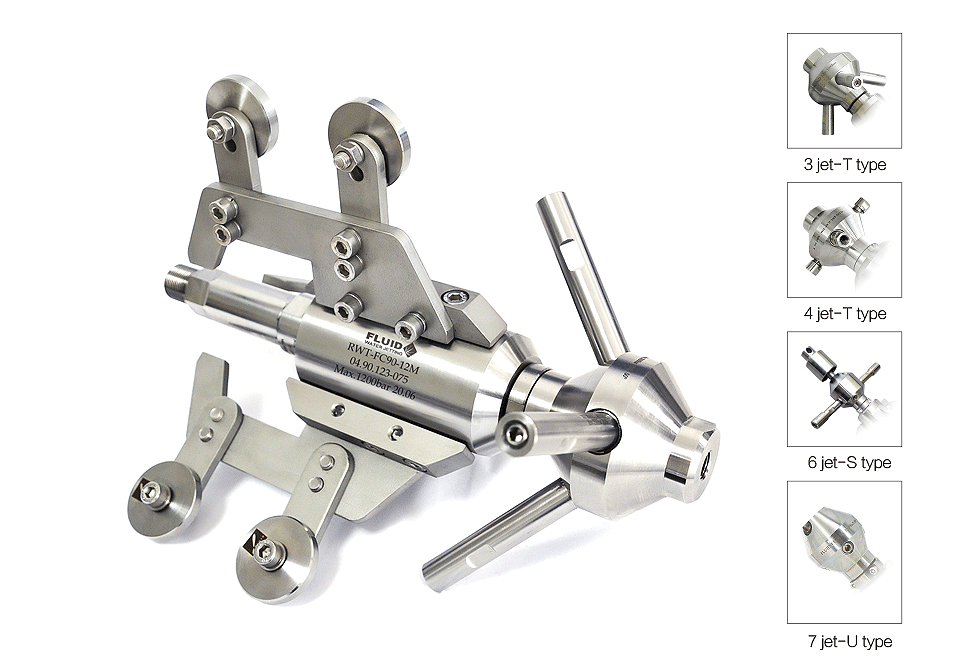

RWT-FC90-30M3
|
With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T" and back jets. |
|
With four M10*1.5 sapphire nozzles screwed in nozzle extensions "T" Two at 90 degrees, two back jets. |
With total six M10*1.5 sapphire nozzles screwed in nozzle head or nozzles extensions "S". Two forward jets, two at 90 degrees, two back jets.
RWT-FC90-30M7
|
With total seven sapphire nozzles screwed in nozzle head. Three 1/4-28 nozzles forward jets , two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets. |
