Home  >  PRODUCTS >  WATER JETTING TOOLS >  SURFACE CLEANING AND SURFACE PREPARATION TOOLS  >  RWT-OF28S

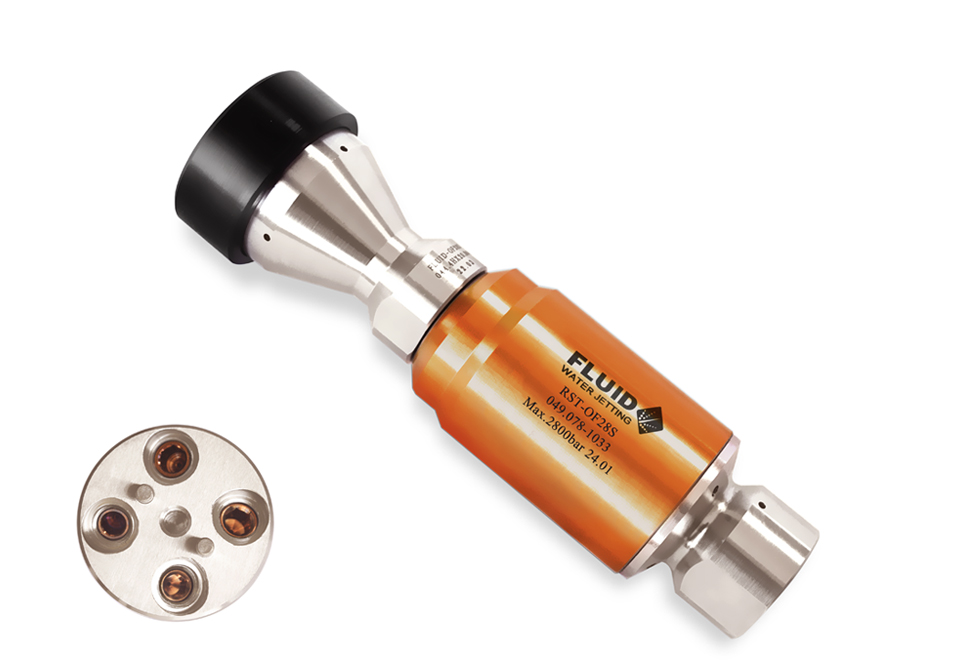

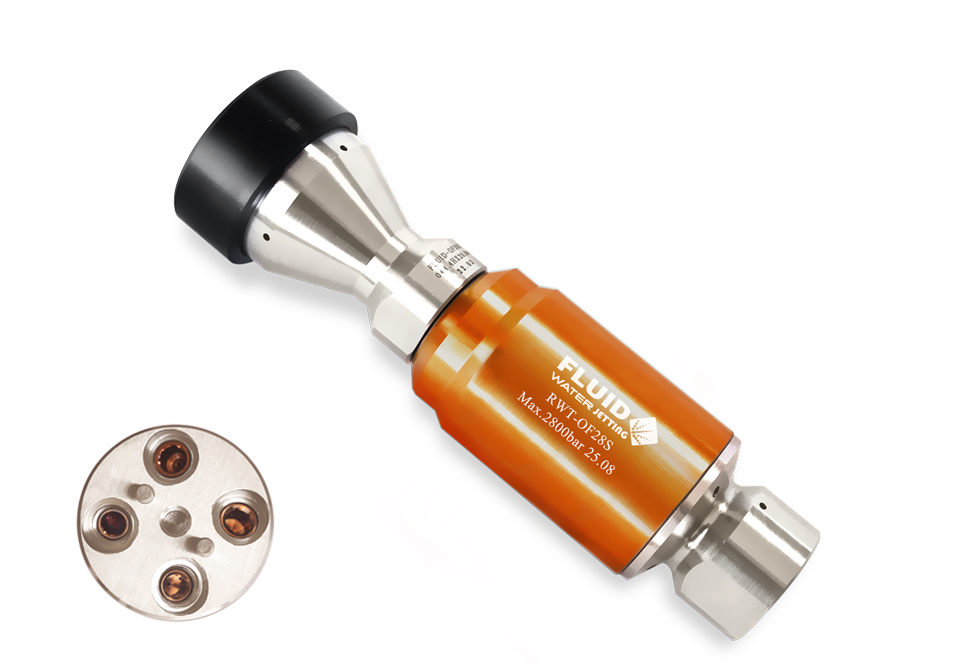

RWT-OF28S
Product parameters


FEATURES:

■ Magnetic speed control, no need of regular maintenance.
Easy to change seal parts.
Adjustable (internal) 3-speed settings


SPECIFICATIONS

Max.Operating pressure:

2800 bar

Flow rang:

10~18 l/min

Rotation speed:

800~2500 rpm

Diameter:

49mm

Total length:

189mm

Approx. weight:

1.30 kg

Connection thread:

1-1/8-12 UNF Female seal with 60-degree cone or custom-made adapter provided

Sapphire nozzle:

4* M10*1.5


Nozzle size
(mm)

Pressure Range(bar)

Flow range
(1/min)

High speed

Mid-speed

Low speed

4xø0.38

1500~2800

×

×

11~14

4xø0.40

1400~2000

1600~2500

1700~2800

12~16

4xø0.45

1200~1500

1500~2000

1600~2200

13~18


X- Not recommended to operate in this speed setting.

Note: When manually operating high pressure guns and lances, the reaction force on

the axis  should not exceed 250 N.  A shoulder stock is  required if  the reaction force

exceeds 150 N.
