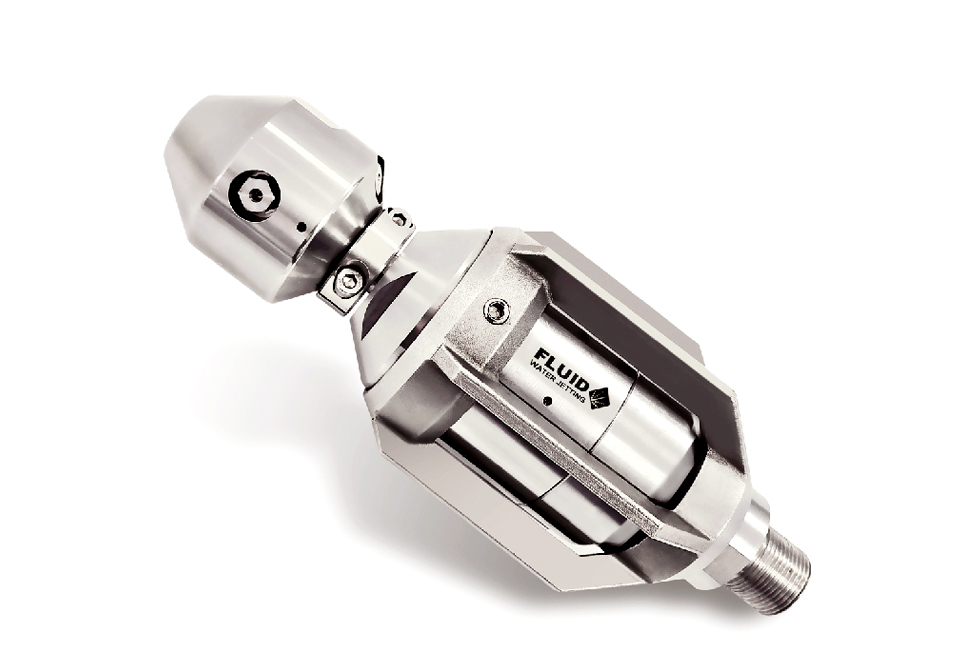

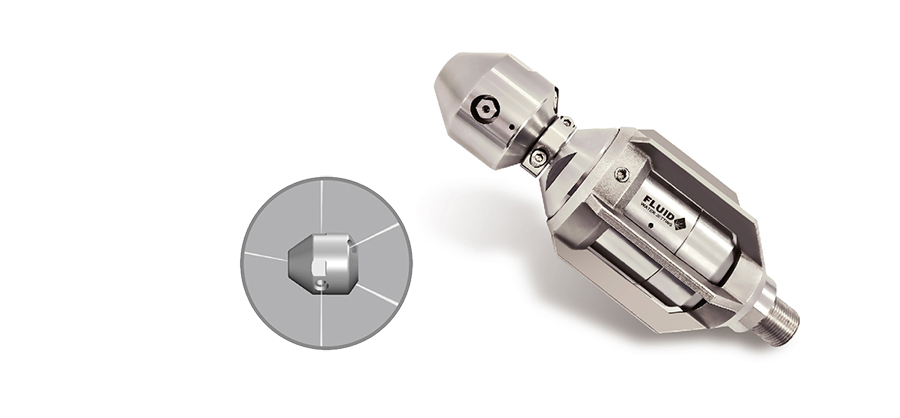

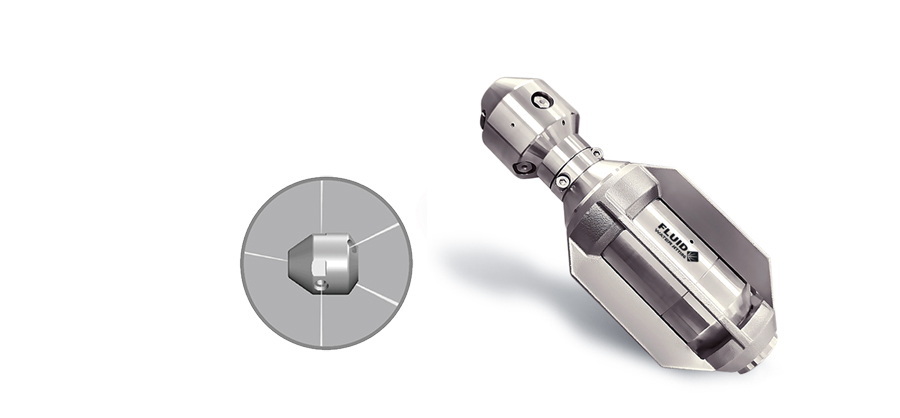

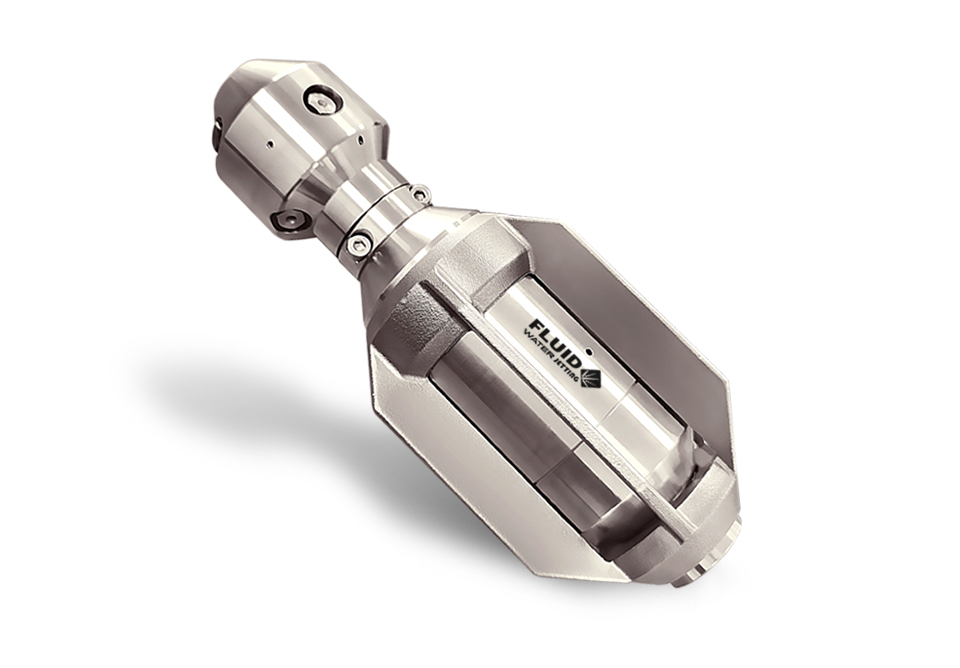

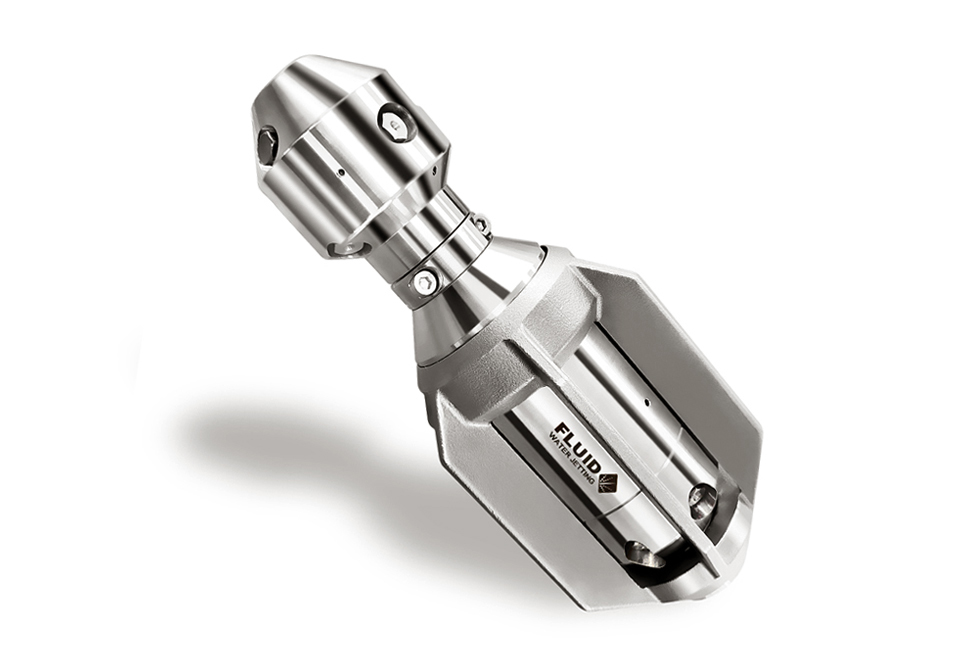

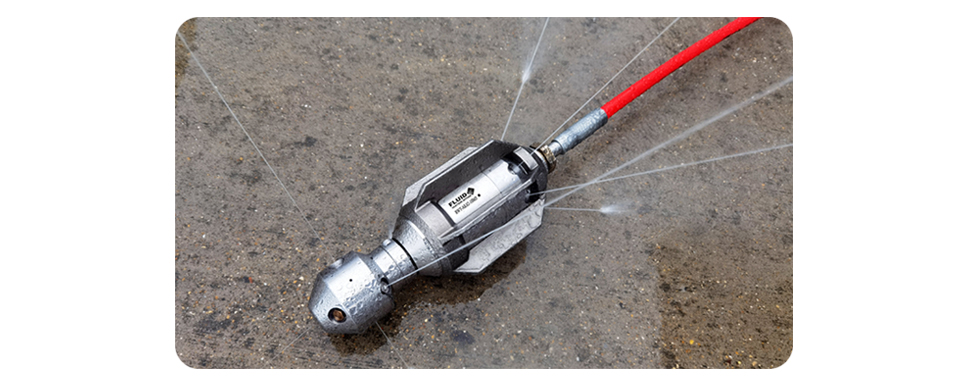

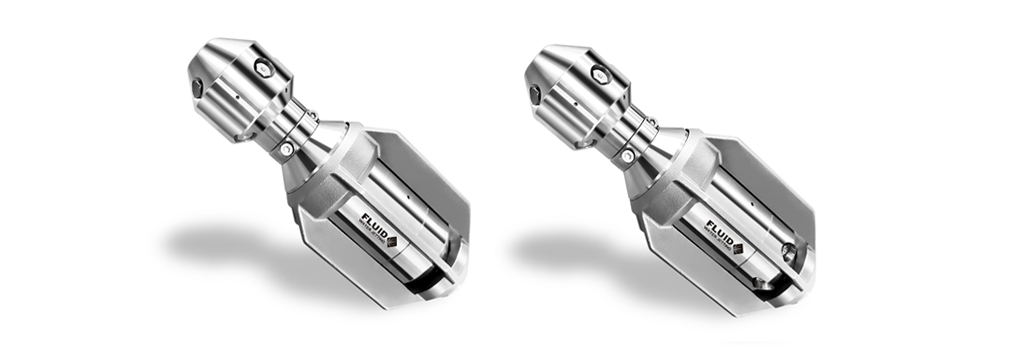

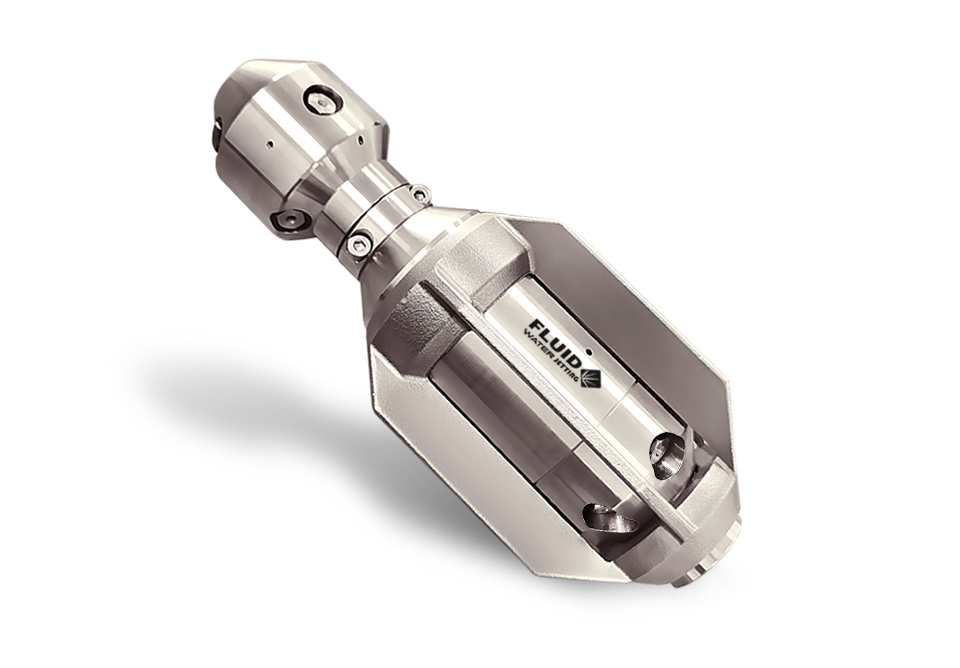

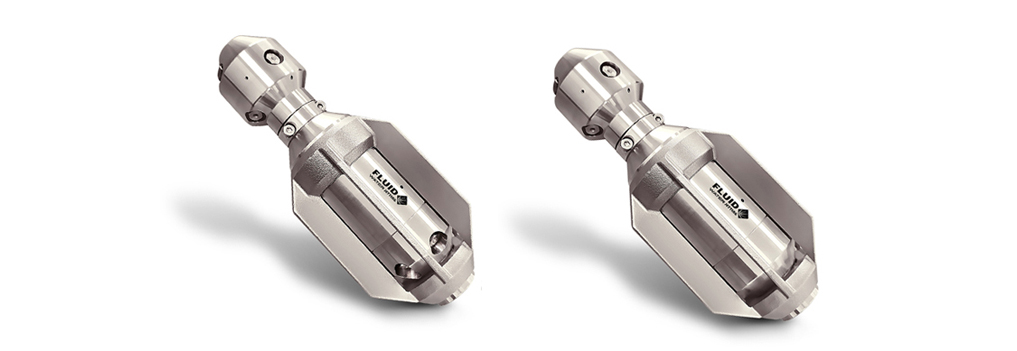

AK62 SERIES (WITH THRUSTER)

Product parameters

FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.

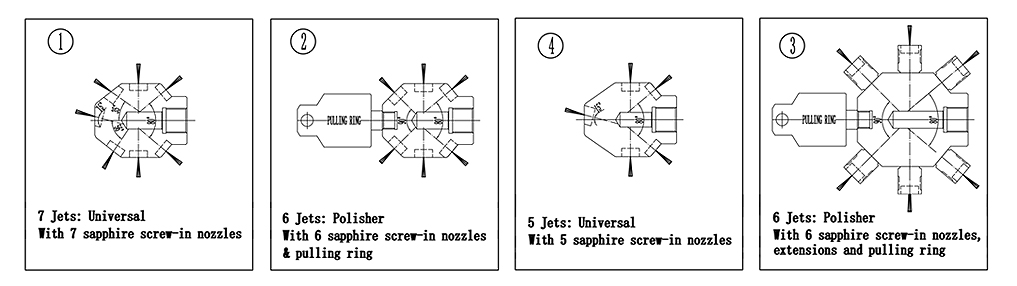

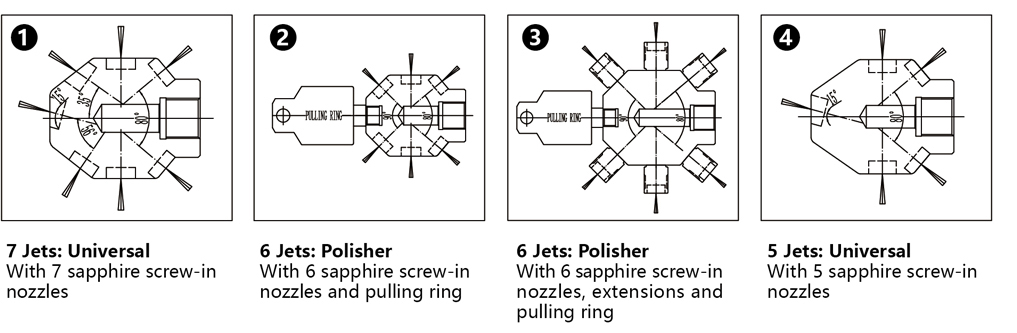

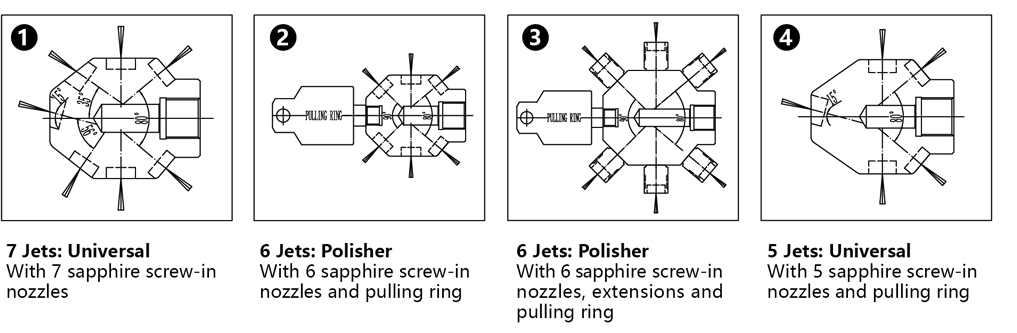

□ Four standard head configurations.

RWT-AK62-10M*(WITH THRUSTER) (3/8-24 UNF sapphire nozzles)

SPECIFICATIONS

Max. Operating pressure：	1000 bar
Max. Flow rate：	468 l/min
Rotation speed：	approx. 200~1500rpm
Body diameter：	ø62 mm (Not incl. centraliser)
Length：	195mm
Connection thread options(Adapters):	□M362.0 (Max1600bar) □M241.5 (Max2000bar) □1/2" NPT (Max1035bar) □3/4" NPT (Max1035bar) □1" NPT (Max1035bar)

RWT-AK62-22M*(3/8-24 UNF sapphire nozzles)

SPECIFICATIONS

Max. Operating pressure：	2200 bar
Max. Flow rate：	168 l/min (incl. thruster flow rate)
Rotation speed：	approx. 200~1500rpm
Body diameter：	ø62 mm (Not incl. centraliser)
Length：	195mm
Connection thread options(Adapters):	□M362.0 (Max1600bar) □M241.5 (Max2000bar) □1-1/8-12UNF (Max3000bar)

RWT-AK62-30M*(3/8-24 UNF sapphire nozzles)

SPECIFICATIONS

Max. Operating pressure：	3000 bar
Max. Flow rate：	75 l/min (incl. thruster flow rate)
Rotation speed：	approx. 200~1500rpm
Body diameter：	ø62 mm (Not incl. centraliser)
Length：	195mm
Connection thread options(Adapters):	□1-1/8-12UNF (Max3000bar)
