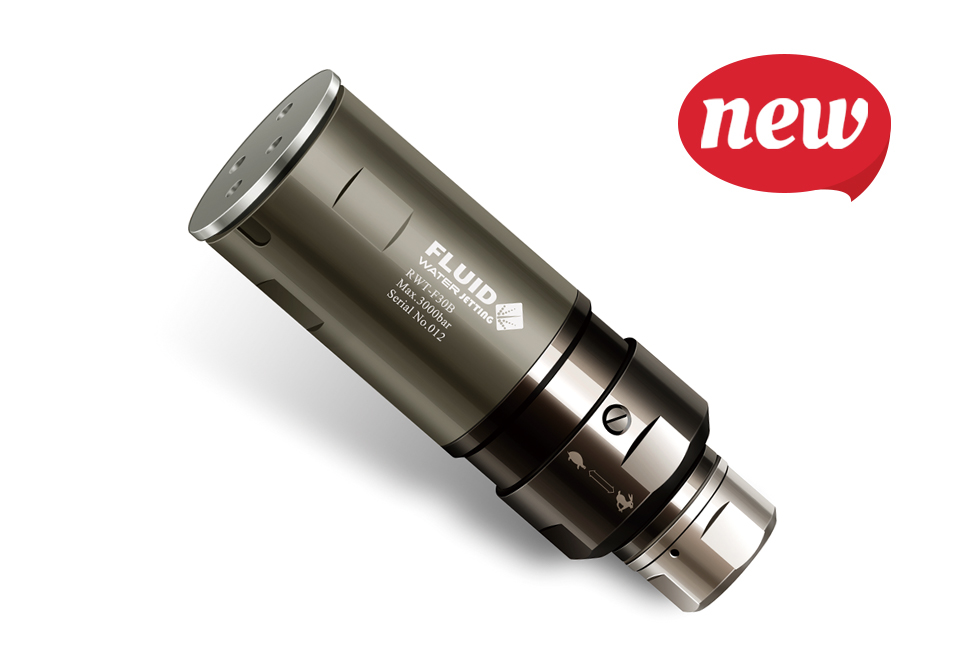

F30B ( Dynamic Seal Assembly )
Product parameters


RWT-F30B ( Dynamic Seal Assembly )


FEATURES:

■ Magnetic speed control, no need of regular maintenance.
■ Externally adjustable rotation speed.
■ Dynamic seal assembly provides longer lifetime.


SPECIFICATIONS

Max.Operating pressure:

3000 bar

Flow range：

9-42 l/min

Rotation speed：

300~3000 rpm

Diameter：

￠56mm

Total length：

172mm

Approx. weight：

1.45 kg

Connection thread：

1-1/8-12 UNF Female

Sapphire nozzle：

4xM10*1.5


Note:  When manually  operating  high  pressure  guns  and  lances , the  reaction  force

on  the  axis   should  not  exceed 250 N.  A  shoulder  stock is  required  if  the  reaction

force exceeds 150 N.




We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
