OF28T/D-R (Dynamic Seal)
Product parameters

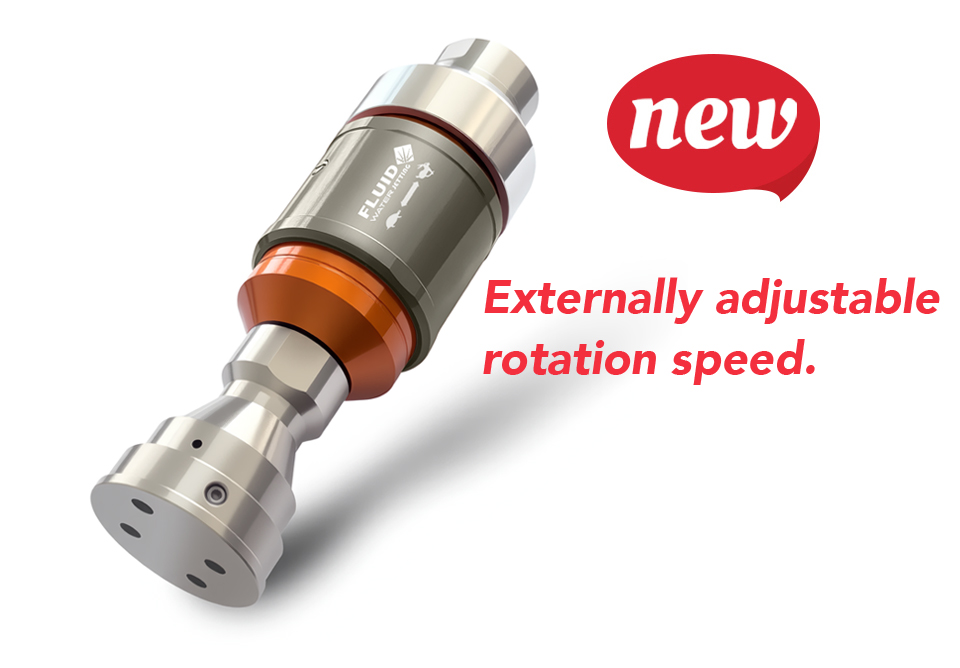

RWT-OF28T/D-R (Dynamic Seal Assembly)


■ Magnetic speed control, no need of regular maintenance.

■ Externally adjustable rotation speed.

■ Two jets ideal for removing thick deposits, four jets ideal for faster removal of thin  coatings/scales.

SPECIFICATIONS

Max.Operating pressure:

2800 bar

Flow range：

7-34 l/min

Rotation speed：

300~2500 rpm

Diameter：

Φ54mm

Total length：

186mm

Approx. weight：

1.2 kg

Connection thread：

1-1/8-12 UNF Female

Sapphire nozzle：

4 X M10*1.5

Or 2 sapphire nozzles + 2 plugs


Note:  When manually  operating  high  pressure  guns  and  lances , the  reaction  force

on  the  axis   should  not  exceed 250 N.  A  shoulder  stock is  required  if  the  reaction

force exceeds 150 N.
